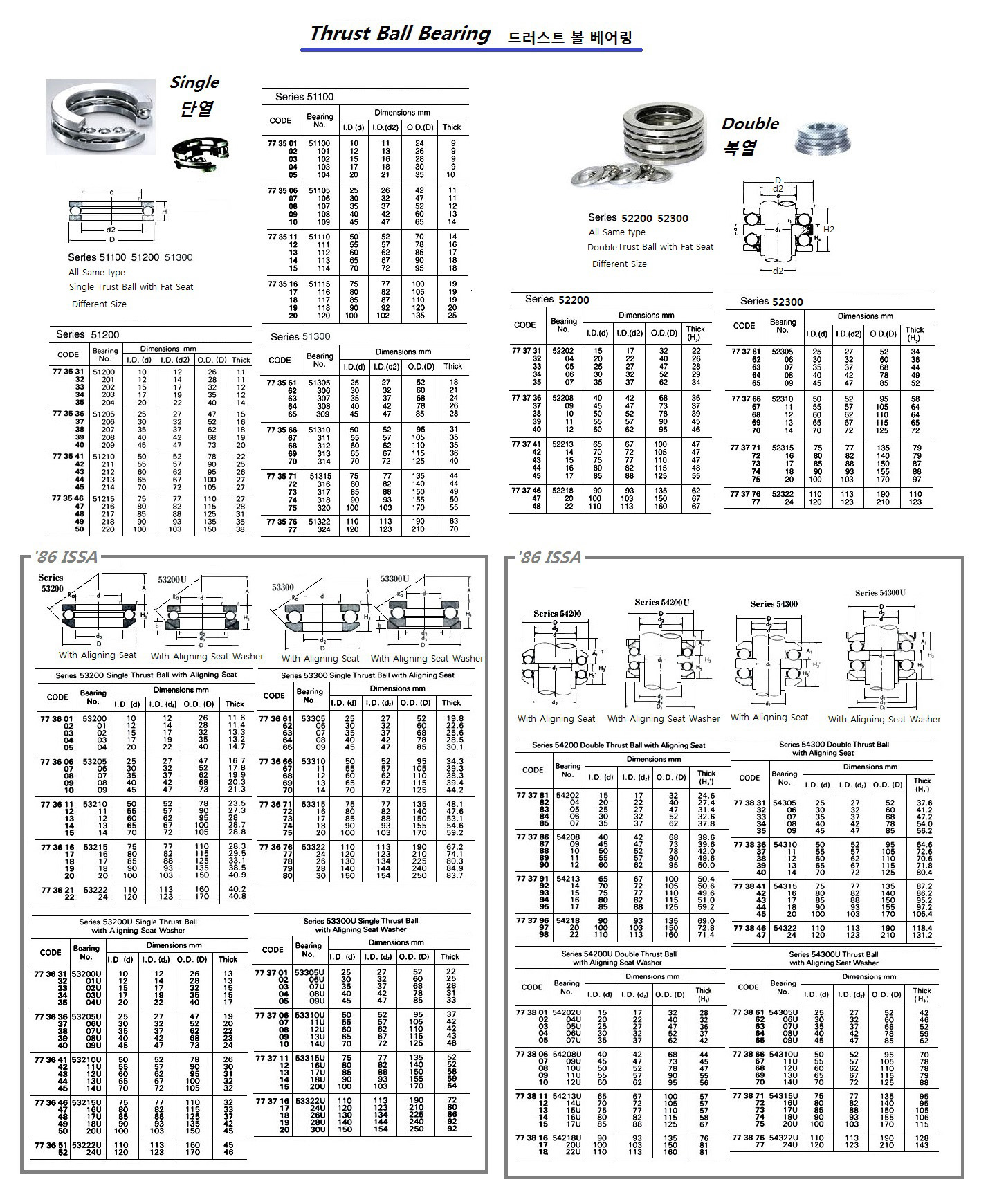

773510 BALL BEARING SINGLE THRUST, WITH FLAT SEAT NO.51109

773510 BALL BEARING SINGLE THRUST, WITH FLAT SEAT NO.51109
规格参数 参数值
IMPA编码 773510
产品单位 PCE
产品规格 Thrust ball bearings are composed of washer-like bearing rings with raceway grooves for the balls. The ring attached to the shaft is called the inner ring or shaft washer while that attached to the housing is called the outer ring or housing washer. In double direction thrust ball bearings, there are three rings with the central one being fixed to the shaft. Single direction and double direction thrust ball bearings can support thrust loads in one or both directions respectively. There are also thrust ball bearings with an aligning seat washer beneath the outer ring in order to compensate for shaft misalignment or mounting errors. Pressed-steel cages are usually used in the smaller bearings and machined cages are generally used in the larger ones. Series 51100
中文汉化 773510 圆柱滚子单向推力轴承，带有51109号平座单向推力滚子轴承由类似垫圈的带球道槽滚道环组成。安装在轴上的那个称为内圈或轴垫圈，而安装在机壳上的那个称为外圈或机壳垫圈。双向推力滚子轴承有三个环，中间那个固定在轴上。单向和双向推力滚子轴承分别能承受一个或两个方向的推力载荷。还有在外圈下方带有对中座垫圈的推力滚子轴承，用于补偿轴偏斜或安装误差。较小的轴承通常使用冲压钢保持架，较大的轴承一般使用切削加工保持架。系列号51100
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
