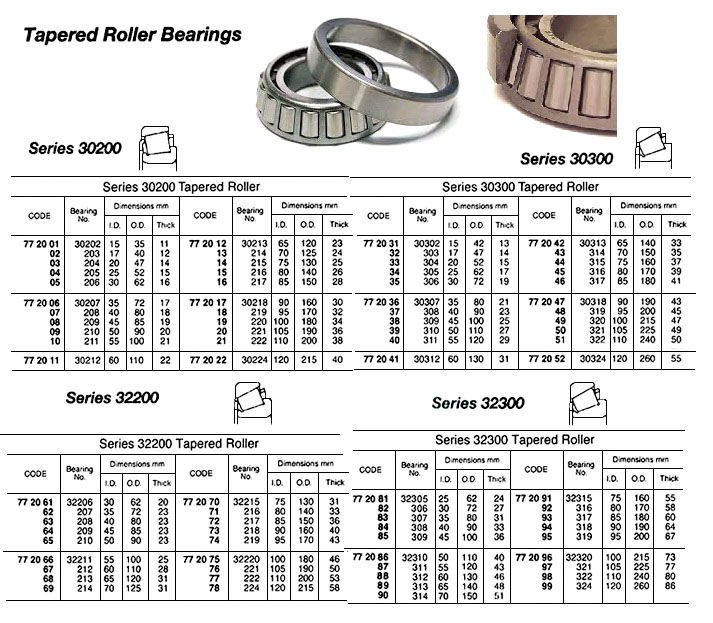

772090 ROLLER BEARING TAPERED, NO.32314

772090 ROLLER BEARING TAPERED, NO.32314
规格参数 参数值
IMPA编码 772090
产品单位 PCE
产品规格 This design utilizes conical rollers and raceways arranged so that all elements of the roller & raceway cones meet at a common apex on the axis of rotation. The roller is guided by contact between the large end of the roller and a rib on the inner rings. This construction provides high capacity for radial loads & single direction thrust loads. The bearings are usually mounted in pairs with axial adjustment to provide proper running clearance within the bearings. Being separable, the inner and outer rings may be mounted individually. For heavy thrust loads the type 30300D with large contact angle is preferable. Series 32300
中文汉化 772090 梯形滚子轴承，型号为32314。该设计采用锥形滚子和滚道，所有滚子和滚道锥的元素在旋转轴线上共用一个顶点。滚子通过滚子大端与内圈肋骨之间的接触引导。这种结构提供了高径向载荷和单向推力载荷的能力。轴承通常成对安装，并进行轴向调整，以在轴承内部提供适当的运行间隙。由于可分离，内圈和外圈可以单独安装。对于重推力负载，推荐使用接触角较大的30300D型轴承。系列号为32300。
