772034 ROLLER BEARING TAPERED, NO.30305

772034 ROLLER BEARING TAPERED, NO.30305
规格参数 参数值
IMPA编码 772034
产品单位 PCE

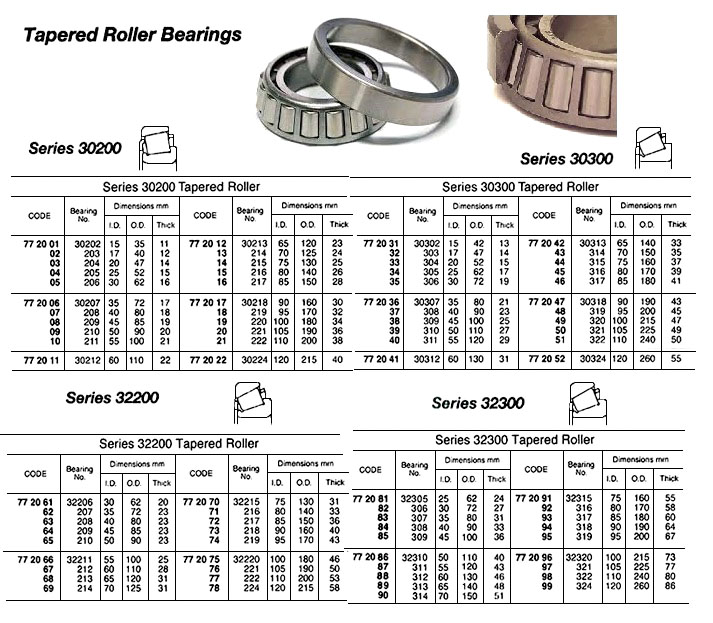

产品规格 This design utilizes conical rollers and raceways arranged so that all elements of the roller & raceway cones meet at a common apex on the axis of rotation. The roller is guided by contact between the large end of the roller and a rib on the inner rings. This construction provides high capacity for radial loads & single direction thrust loads. The bearings are usually mounted in pairs with axial adjustment to provide proper running clearance within the bearings. Being separable, the inner and outer rings may be mounted individually. For heavy thrust loads the type 30300D with large contact angle is preferable. Series 30300
中文汉化 772034 滚动轴承, 锥形, 30305 该设计使用锥形滚子和跑道，排列方式使得滚子和跑道锥的所有元素都在旋转轴上的一个共同顶点相遇。滚子通过滚子大端与内圈肋骨之间的接触引导。这种结构提供了高径向载荷和单向推力载荷的能力。轴承通常成对安装，并进行轴向调整，以在轴承内部提供适当的运行间隙。由于可分离，内圈和外圈可以单独安装。对于重推力负载，30300D型（大接触角）更为适用。系列30300
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
