772657 ROLLER BEARING SPHERICAL, TAPERED NO.22328K

772657 ROLLER BEARING SPHERICAL, TAPERED NO.22328K
规格参数 参数值
IMPA编码 772657
产品单位 PCE

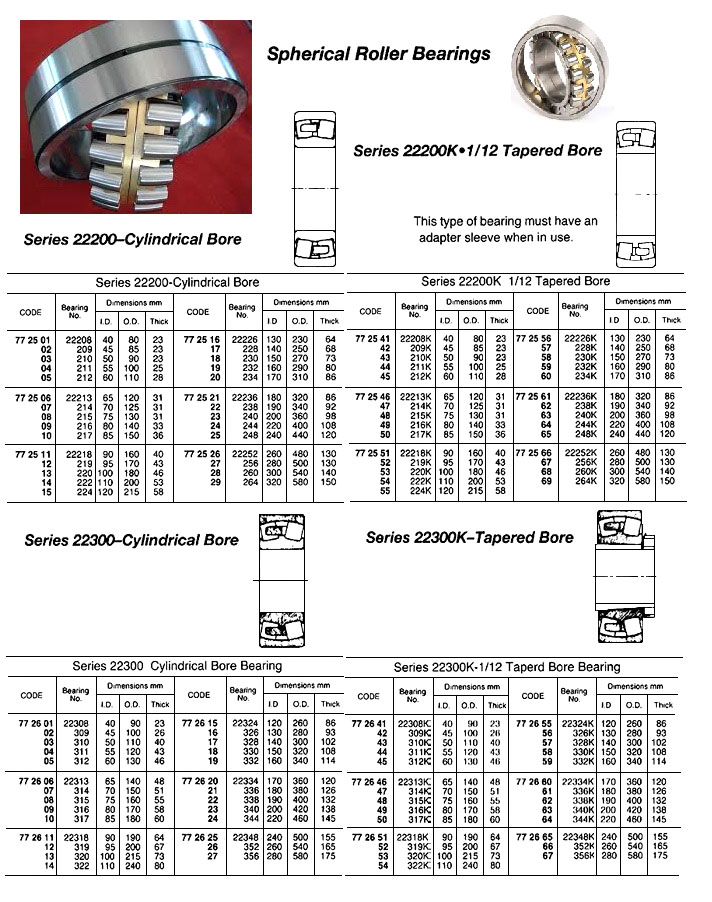

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22300K–Tapered Bore
中文汉化 772657 滚动轴承球形，阶梯形，No.22328K 在这种设计中，两排滚子在内圈上带有导条的磨削单独跑道上运行，以引导滚子。 外圈有一个单一的球形跑道，因此允许内圈和滚子自由补偿由于机器部件不准确或载荷下轴或外壳的弹性变形引起的角误差。 由于线接触、大量滚子和大的接触角，这些轴承具有大的径向和推力承载能力。 它们适合重冲击负载。 22300K系列 - 步进孔
