772662 ROLLER BEARING SPHERICAL, TAPERED NO.22338K

772662 ROLLER BEARING SPHERICAL, TAPERED NO.22338K
规格参数 参数值
IMPA编码 772662
产品单位 PCE

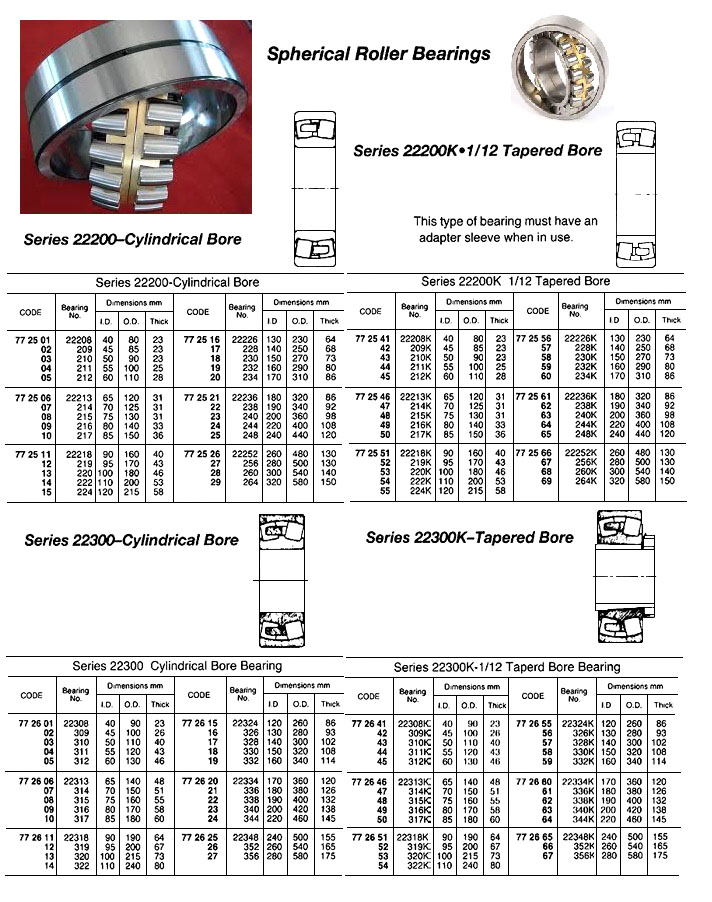

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22300K–Tapered Bore
中文汉化 772662 球面滚子轴承，阶梯形，22338K型 在这种设计中，两排滚子在内圈上磨有导向肋的单独跑道中运行。 外圈有一个单球形跑道，因此内圈和滚子可以自由补偿由于机器部件不准确或载荷下轴或机座的弹性变形引起的角误差。 由于线接触、大量滚子和大的接触角，这些轴承具有大的径向和轴向载荷容量。 它们适合重冲击负载。 22300K系列 - 阶梯孔
