772603 ROLLER BEARING SPHERICAL, NO.22310

772603 ROLLER BEARING SPHERICAL, NO.22310
规格参数 参数值
IMPA编码 772603
产品单位 PCE

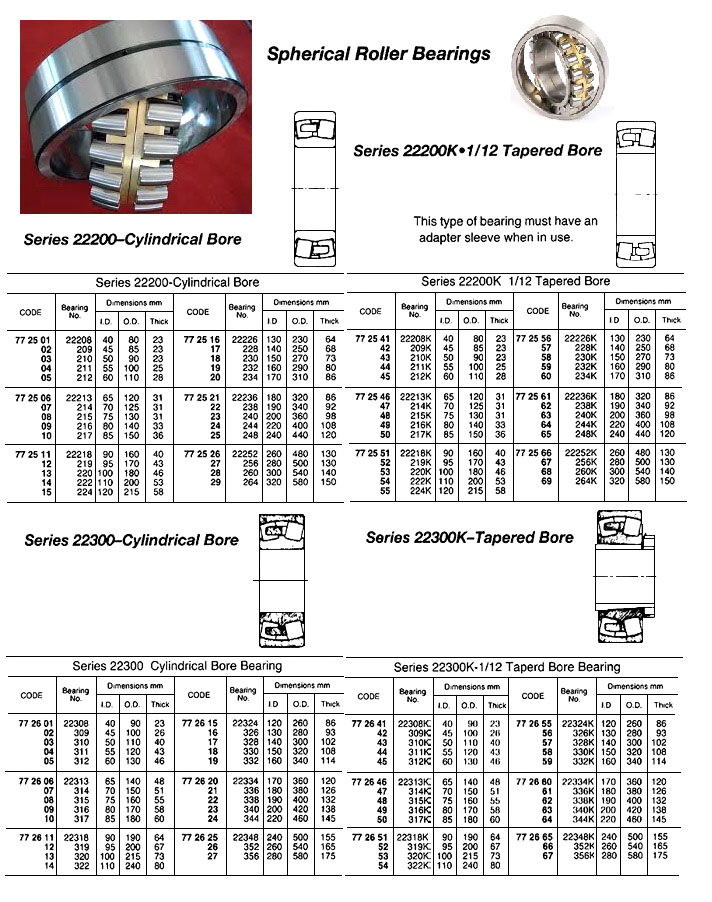

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22300–Cylindrical Bore
中文汉化 772603 滚珠轴承，22310型 这种设计中，两排滚子在内圈上由导条引导，在单独的磨削槽中运行。外圈有一个单一的球形槽，因此可以自由补偿由于机器部件不准确或载荷下轴和轴承箱的弹性变形而产生的角误差。由于线接触、大量滚子和大的接触角，这些轴承具有大的径向和推力承载能力，适合重冲击和负载。22300系列 - 柱形孔
物料版本
