772550 ROLLER BEARING SPHERICAL, NO.22217K

772550 ROLLER BEARING SPHERICAL, NO.22217K
规格参数 参数值
IMPA编码 772550
产品单位 PCE

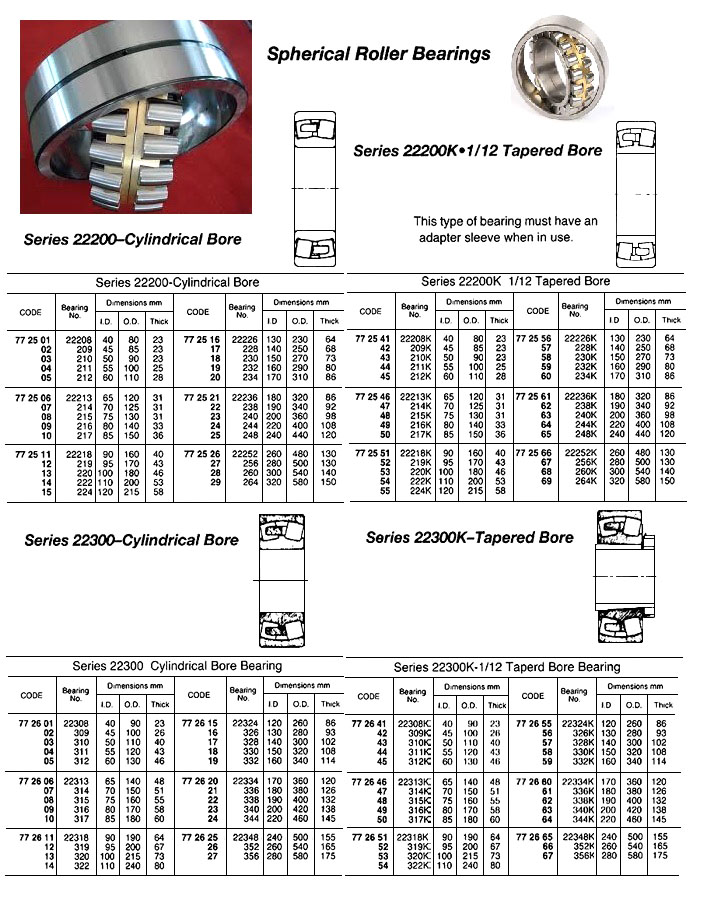

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22200K•1/12 Tapered Bore. This type of bearing must have an adapter sleeve when in use.
中文汉化 772550 滚珠轴承，型号22217K 这种设计中，两排滚子在内圈上刻有引导肋的单独滚道中运行。外圈有一个单一的球形滚道，使得内圈和滚子能够自由补偿由于机器部件不准确或载荷下轴和机壳的弹性变形造成的角度误差。由于线接触、大量滚子以及较大的接触角，这些轴承具有大的径向和推力承载能力，适用于重冲击和负载。 22200K•1/12 Tapered Bore系列。这种轴承在使用时需要配合安装套筒。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
