772569 ROLLER BEARING SPHERICAL, NO.22264K

772569 ROLLER BEARING SPHERICAL, NO.22264K
规格参数 参数值
IMPA编码 772569
产品单位 PCE

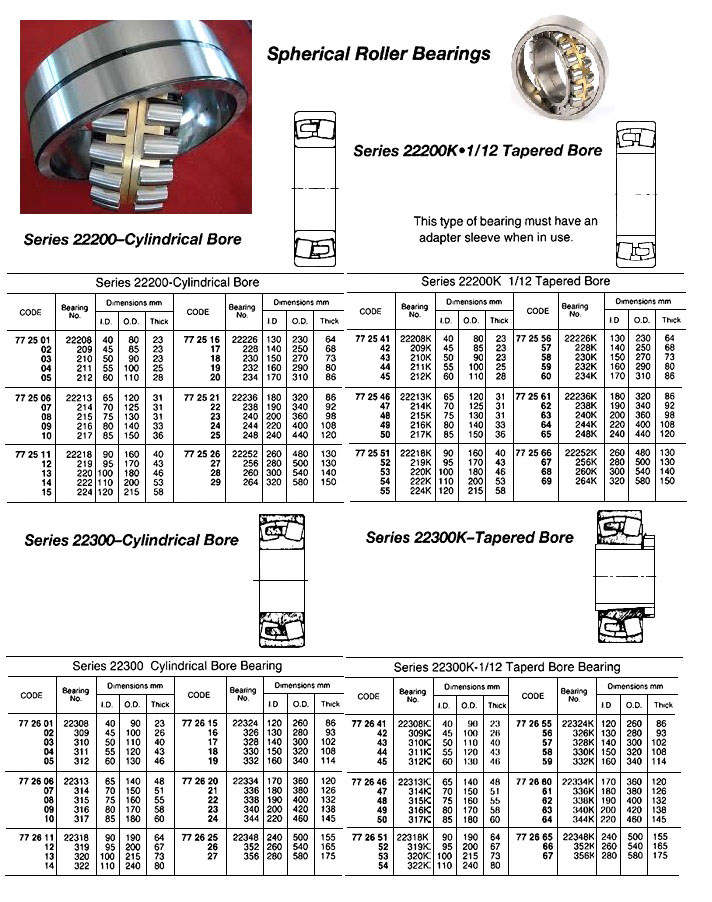

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22200K•1/12 Tapered Bore. This type of bearing must have an adapter sleeve when in use.
中文汉化 772569 滚动轴承球形, 22264K 在这种设计中,两排滚子在内圈上磨有单独的滚道,并且有一个导条引导滚子。 外圈有一个单列球形滚道，因此允许内圈和滚子自由补偿由于机器部件不准确或载荷下轴或外壳的弹性变形引起的角误差。 由于线接触、大量滚子以及较大的接触角，这些轴承具有大的径向和推力承载能力。 它们适合承受重冲击和负载。 22200K•1/12 Tapered 内孔系列。 当使用此类轴承时，必须配备适配筒。
