772524 ROLLER BEARING SPHERICAL, NO.22244

772524 ROLLER BEARING SPHERICAL, NO.22244
规格参数 参数值
IMPA编码 772524
产品单位 PCE

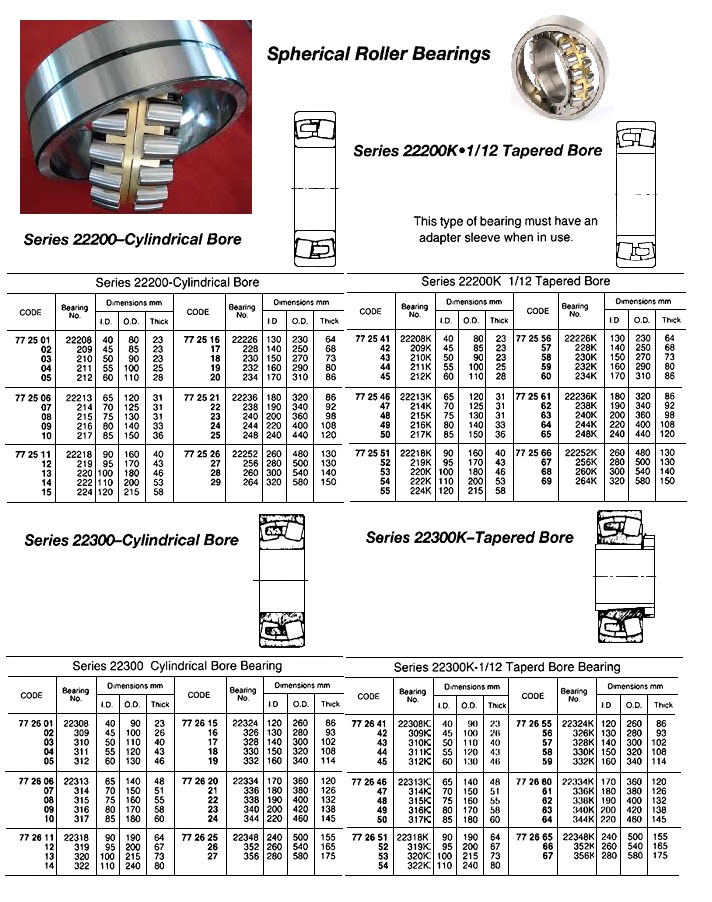

产品规格 In this design, two rows of rollers operate in separate raceways ground into the inner ring with a guide rib to guide the rollers. The outer ring has a single spherical raceway, thus allowing the inner ring and rollers to freely compensate for angular errors due to inaccurate machine components or due to elastic deflection of the shaft or housing under loads. As a result of the line contact, a large number of rollers, and the substantial contact angle, these bearings have large radial and thrust load capacity. They are suitable for heavy shock and impact loads. Series 22200–Cylindrical Bore
中文汉化 772524 滚动轴承 球型，型号22244 在这种设计中，两排滚子在内圈上磨有单独的滚道，并带有导条引导滚子。 外圈有一个单一的球形滚道，因此允许内圈和滚子自由补偿由于机器部件不准确或载荷下轴或外壳的弹性变形引起的角误差。 由于线接触、大量滚子和较大的接触角，这些轴承具有大的径向和推力承载能力。 它们适合承受重冲击和负载。 系列22200 - 圆柱形孔
物料版本
