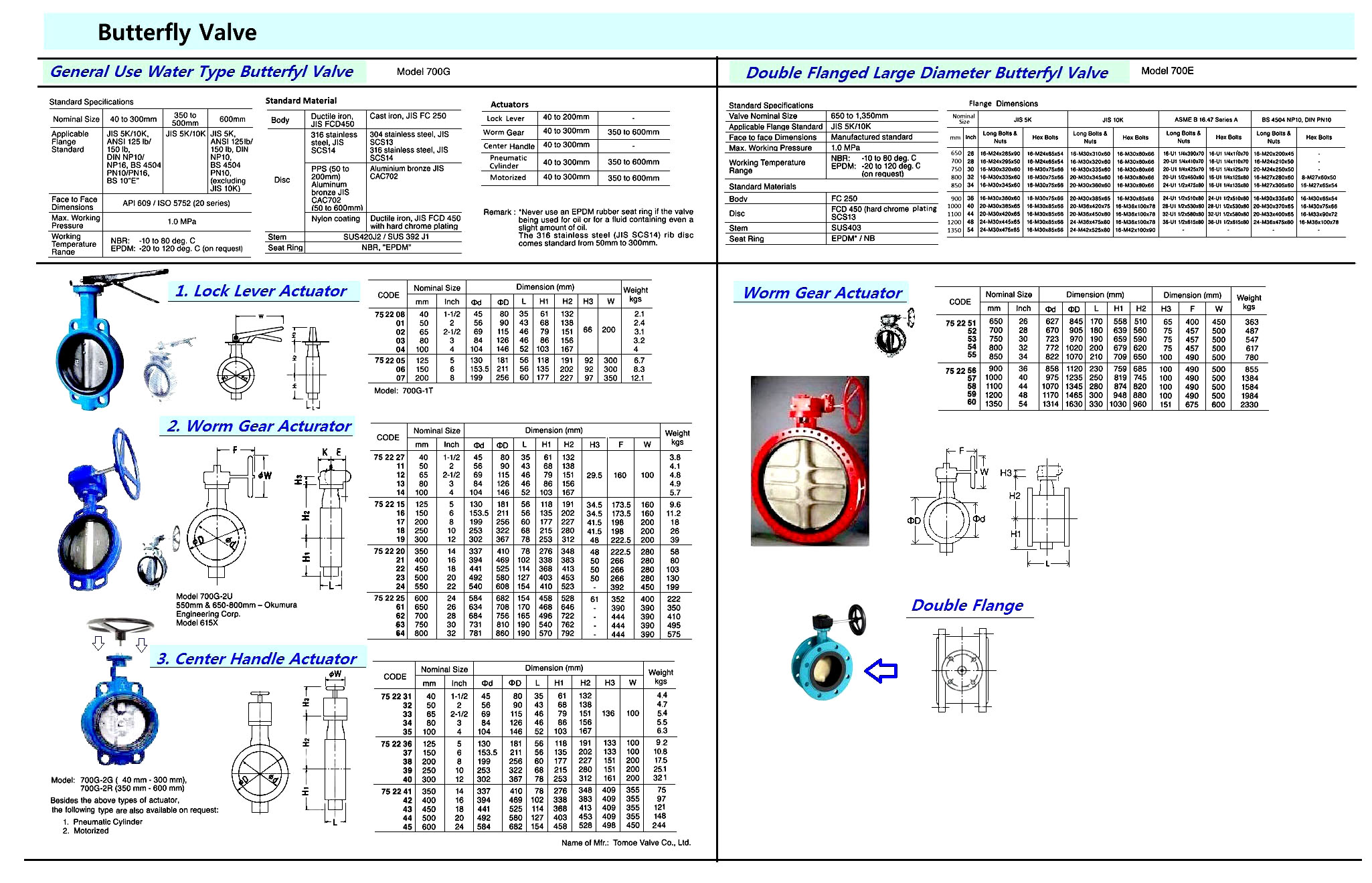

752206 BUTTERFLY VALVE WAFER TYPE, W/LOCK LEVER 6"

752206 BUTTERFLY VALVE WAFER TYPE, W/LOCK LEVER 6
规格参数 参数值
IMPA编码 752206
产品单位 PCE
产品规格 Compared with conventional gate and globe valves, butterfly valves achieve high performance near to perfection with its pressure resistance and durability. Especially in vessels, the Butterfly Valves enjoy high reliability and when compared with the conventional valves, the Butterfly Valves are excellent in the following aspects: (1) light and compact, (2) maintenance is easy, (3) labour-saving ease of operation, and (4) low cost. 1. Lock Lever Actuator: Generally used in small diameters. Opening and closing operations can be done with a light one-touch device, by turning the lever to only 90 degrees. Moreover, flow regulation is available with a ten-step locking device. Opening degrees are indicated by the tip of the lever.
中文汉化 752206 蝴蝶阀, 板型, 带锁定手柄, 6英寸 相对于传统闸阀和球阀，蝴蝶阀在压力抵抗和耐用性方面表现出极高的性能。特别是在船舶中，蝴蝶阀具有高度可靠性，相比于传统阀门，蝴蝶阀在以下方面表现出色：(1)轻便且紧凑；(2)维护简便；(3)操作省力；(4)成本低。 1. 锁定手柄执行器：通常用于较小直径的阀门。只需轻轻一触，通过将手柄旋转90度即可完成开关操作。此外，还配备了十级锁定装置进行流量调节。手柄尖端指示开启角度。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
