757261 GATE VALVE ANSI 150 CARBON STL, S.STEEL TRIM FLANGED #1850 2"

757261 GATE VALVE ANSI 150 CARBON STL, S.STEEL TRIM FLANGED #1850 2
规格参数 参数值
IMPA编码 757261
产品单位 PCE

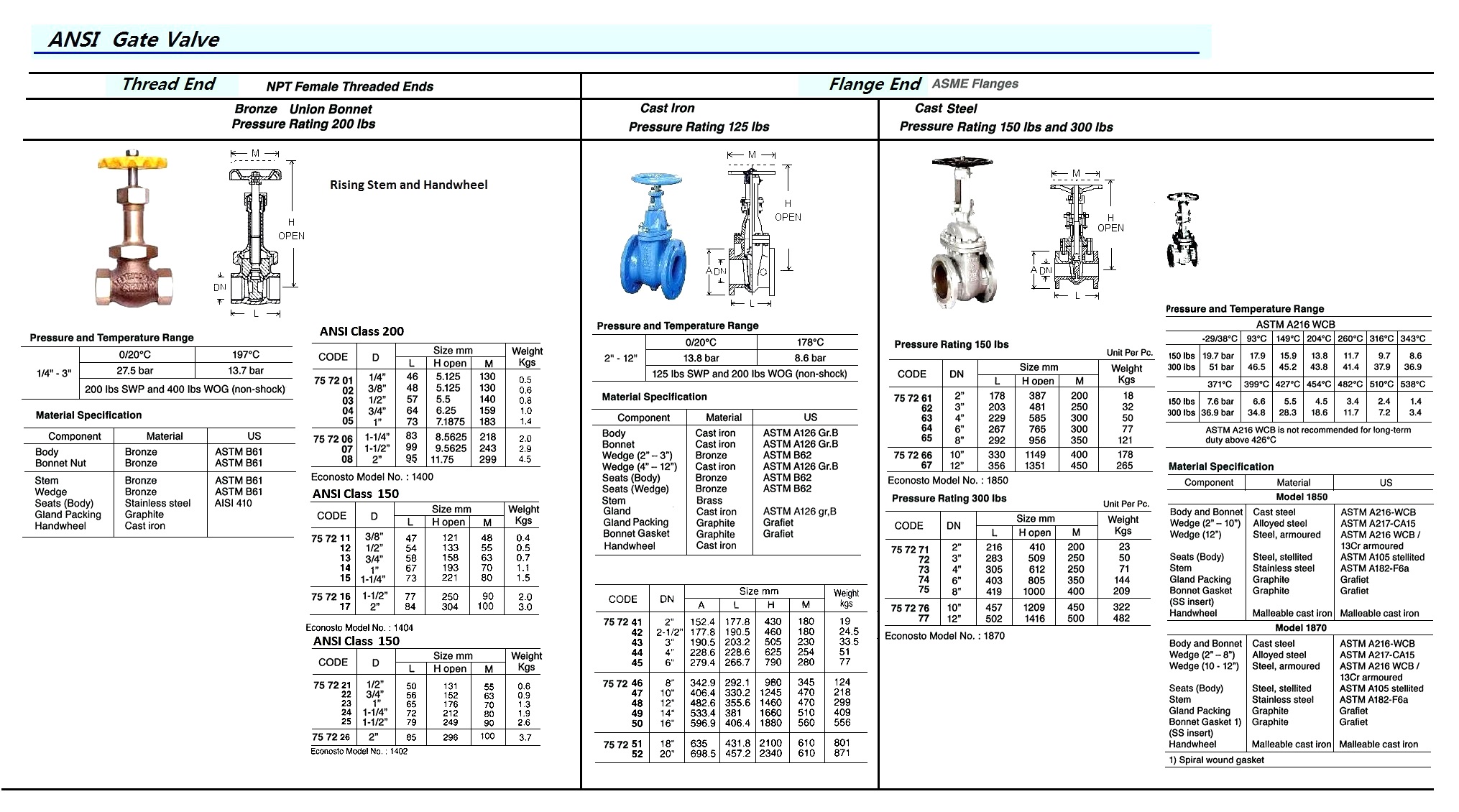

产品规格 Cast steel gate valves with flexible wedge, stainless steel seats, pressure rating 150 lbs and 300 lbs, full bore, rising stem, non-rising handwheel, bolted bonnet with yoke, flanged connection acc. to ASME B16.5 (“raised face – smooth finish”), face to face acc. to ASME B16.10. On request, supplied including EN 10204 3.1.B material and test certificate. Application : steam, water, oil, vapours and gases.
中文汉化 757261 闸阀ANSI 150碳钢铸铁，不锈钢镶块，法兰连接，型号为#1850。这是2英寸的碳钢闸阀，配备柔性楔形结构，不锈钢座圈，压力等级为150磅和300磅，全通径设计，升起式阀杆，非升起式手轮，带有轭型固定法兰盖，符合ASME B16.5（“凸面-光洁表面”）标准，面对面连接符合ASME B16.10标准。如需，可提供EN 10204 3.1.B材料证明和测试证书。这款阀门适用于蒸汽、水、油、蒸汽和气体应用。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
