757264 GATE VALVE ANSI 150 CARBON STL, S.STEEL TRIM FLANGED #1850 6"

757264 GATE VALVE ANSI 150 CARBON STL, S.STEEL TRIM FLANGED #1850 6
规格参数 参数值
IMPA编码 757264
产品单位 PCE

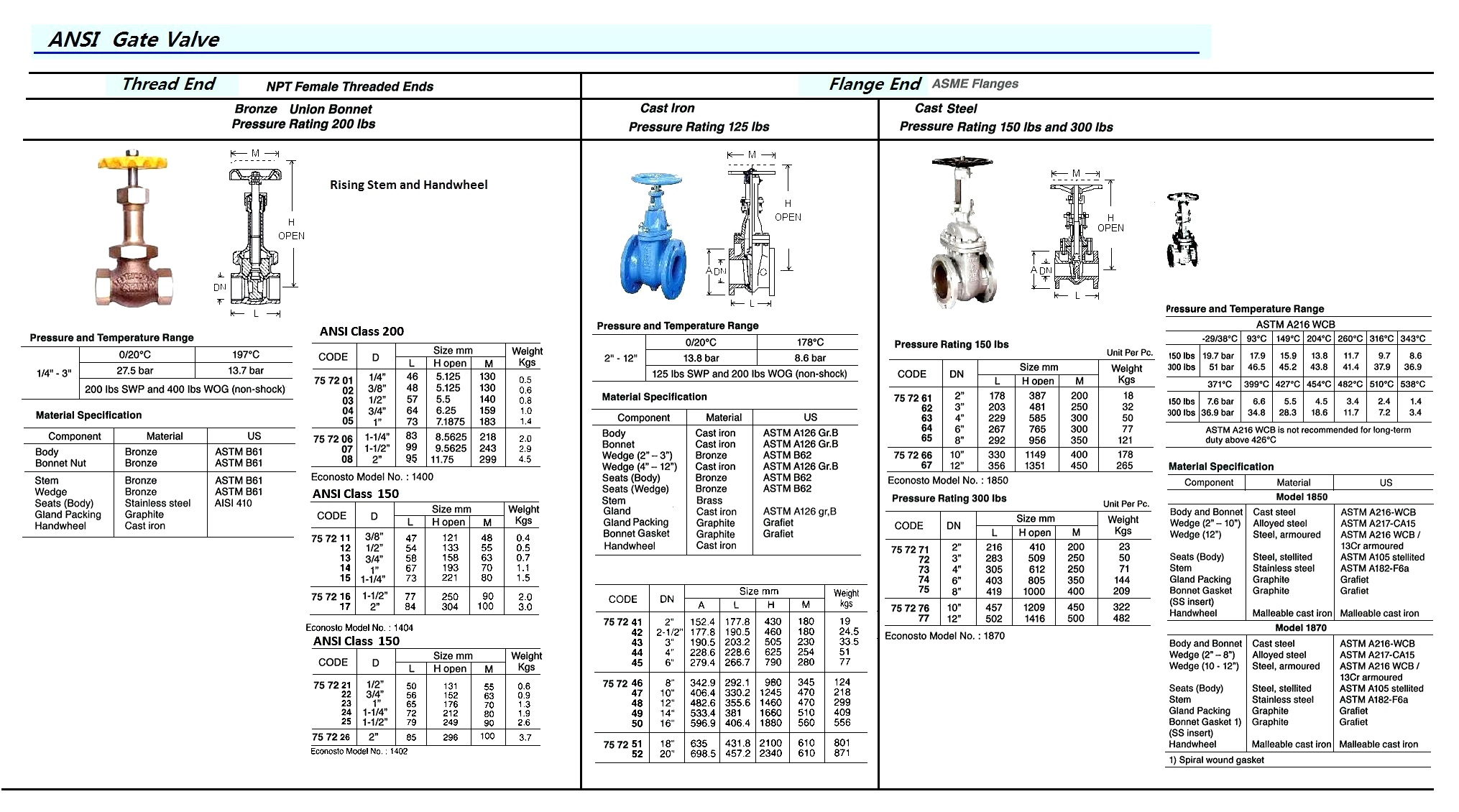

产品规格 Cast steel gate valves with flexible wedge, stainless steel seats, pressure rating 150 lbs and 300 lbs, full bore, rising stem, non-rising handwheel, bolted bonnet with yoke, flanged connection acc. to ASME B16.5 (“raised face – smooth finish”), face to face acc. to ASME B16.10. On request, supplied including EN 10204 3.1.B material and test certificate. Application : steam, water, oil, vapours and gases.
中文汉化 757264 截止阀 ANSI 150 碳钢 STL，SS 填料座，法兰连接，型号为 #1850，这是6英寸铸钢截止阀，采用柔性楔形设计，不锈钢阀座，工作压力等级为150磅和300磅，全通径，升起式阀杆，非升起式手轮，带有轭型固定法兰盖，按照ASME B16.5标准（“凸面-光洁表面”）进行法兰连接，并遵循ASME B16.10对面距离规定。如需，可提供EN 10204 3.1.B材料证明和测试证书。适用介质：蒸汽、水、油、蒸气和气体。
物料版本
