757265 GATE VALVE ANSI 150 CARBON STL, S.STEEL TRIM FLANGED #1850 8"

规格参数	参数值
IMPA编码	757265
产品单位	PCE

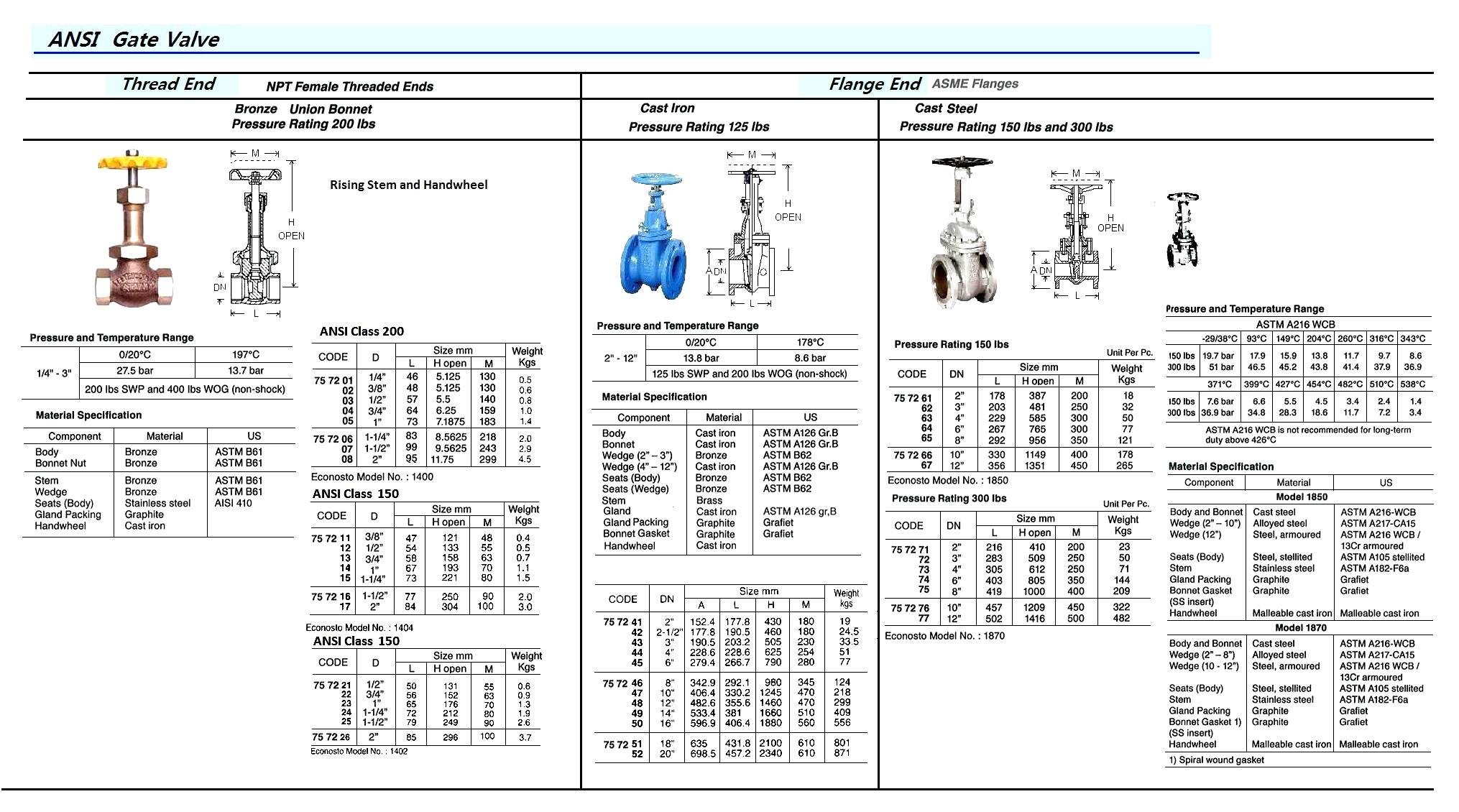

产品规格	Cast steel gate valves with flexible wedge, stainless steel seats, pressure rating 150 lbs and 300 lbs, full bore, rising stem, non-rising handwheel, bolted bonnet with yoke, flanged connection acc. to ASME B16.5 (“raised face – smooth finish”), face to face acc. to ASME B16.10. On request, supplied including EN 10204 3.1.B material and test certificate. Application : steam, water, oil, vapours and gases.
中文汉化	757265 闸阀 ANSI 150 碳钢 STL，不锈钢镶块，法兰连接，型号#1850 - 这是一种8英寸铸钢闸阀，配备柔性楔形，不锈钢座圈，压力等级为150磅和300磅，全通径设计，升起式阀杆，非升起式手轮，带有轭型固定顶盖，法兰连接符合ASME B16.5标准（“凸面-光洁表面”），面对面连接符合ASME B16.10标准。如需，可提供EN 10204 3.1.B材料证明和测试证书。适用范围：蒸汽、水、油、蒸汽和气体。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
