757277 GATE VALVE ANSI 300 CARBON STL, S.STEEL TRIM FLANGED #1870 12"

757277 GATE VALVE ANSI 300 CARBON STL, S.STEEL TRIM FLANGED #1870 12
规格参数 参数值
IMPA编码 757277
产品单位 PCE

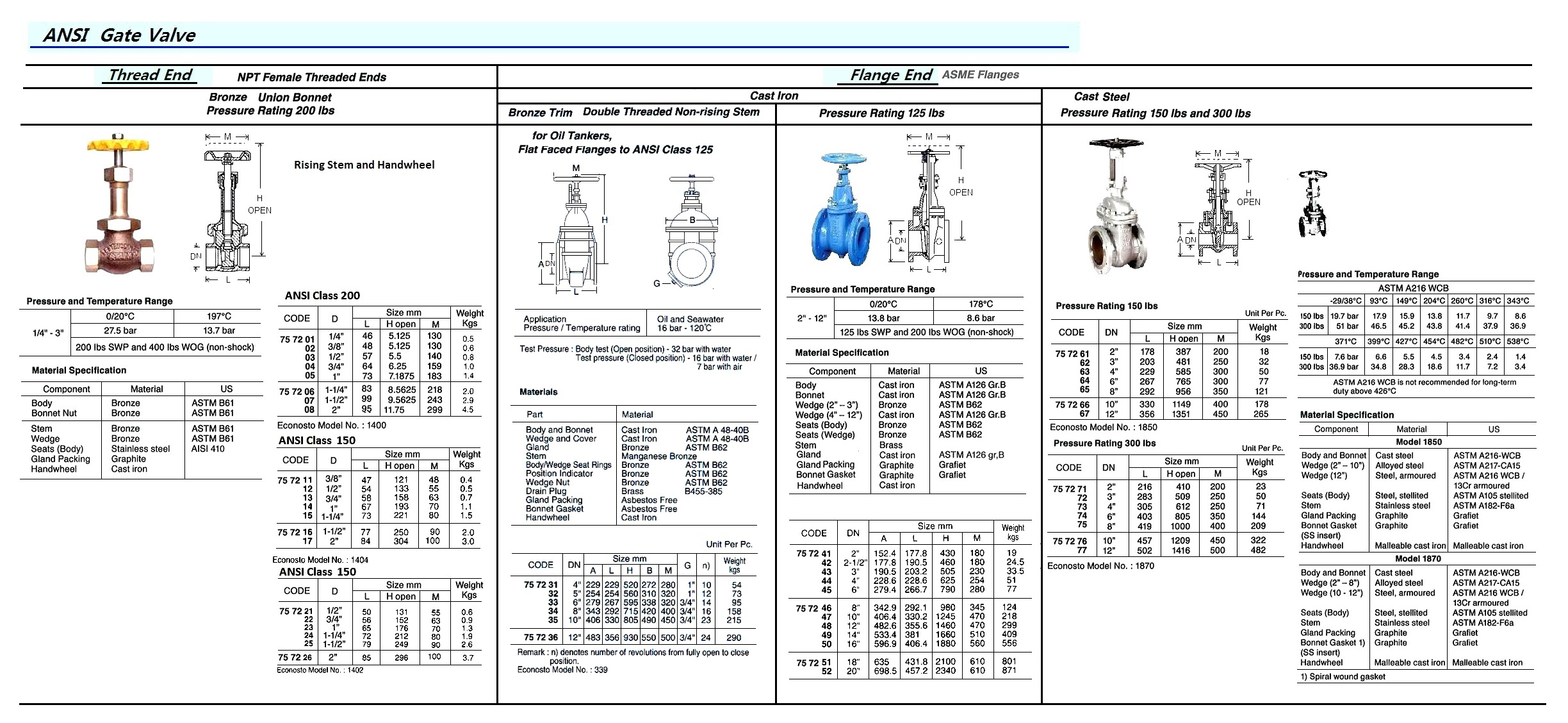

产品规格 Cast steel gate valves with flexible wedge, stainless steel seats, pressure rating 150 lbs and 300 lbs, full bore, rising stem, non-rising handwheel, bolted bonnet with yoke, flanged connection acc. to ASME B16.5 (“raised face – smooth finish”), face to face acc. to ASME B16.10. On request, supplied including EN 10204 3.1.B material and test certificate. Application : steam, water, oil, vapours and gases.
中文汉化 757277 带碳钢阀体和不锈钢阀座、法兰连接的ANSI 300级闸阀，型号为#1870，12英寸铸钢闸阀，采用柔性楔形设计，具有150磅和300磅的工作压力等级，全通径，升起式阀杆，非升起式手轮，带有轭型固定顶盖，法兰连接符合ASME B16.5标准（“凸面-光洁表面”），面对面符合ASME B16.10标准。如需，可提供EN 10204 3.1.B材料证明和测试证书。适用范围：蒸汽、水、油、蒸汽和气体。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
