757333 CHECK VALVE ANSI150 CAST STEEL, FLANGED SWING TYPE #1810 4"

757333 CHECK VALVE ANSI150 CAST STEEL, FLANGED SWING TYPE #1810 4
规格参数 参数值
IMPA编码 757333
产品单位 PCE

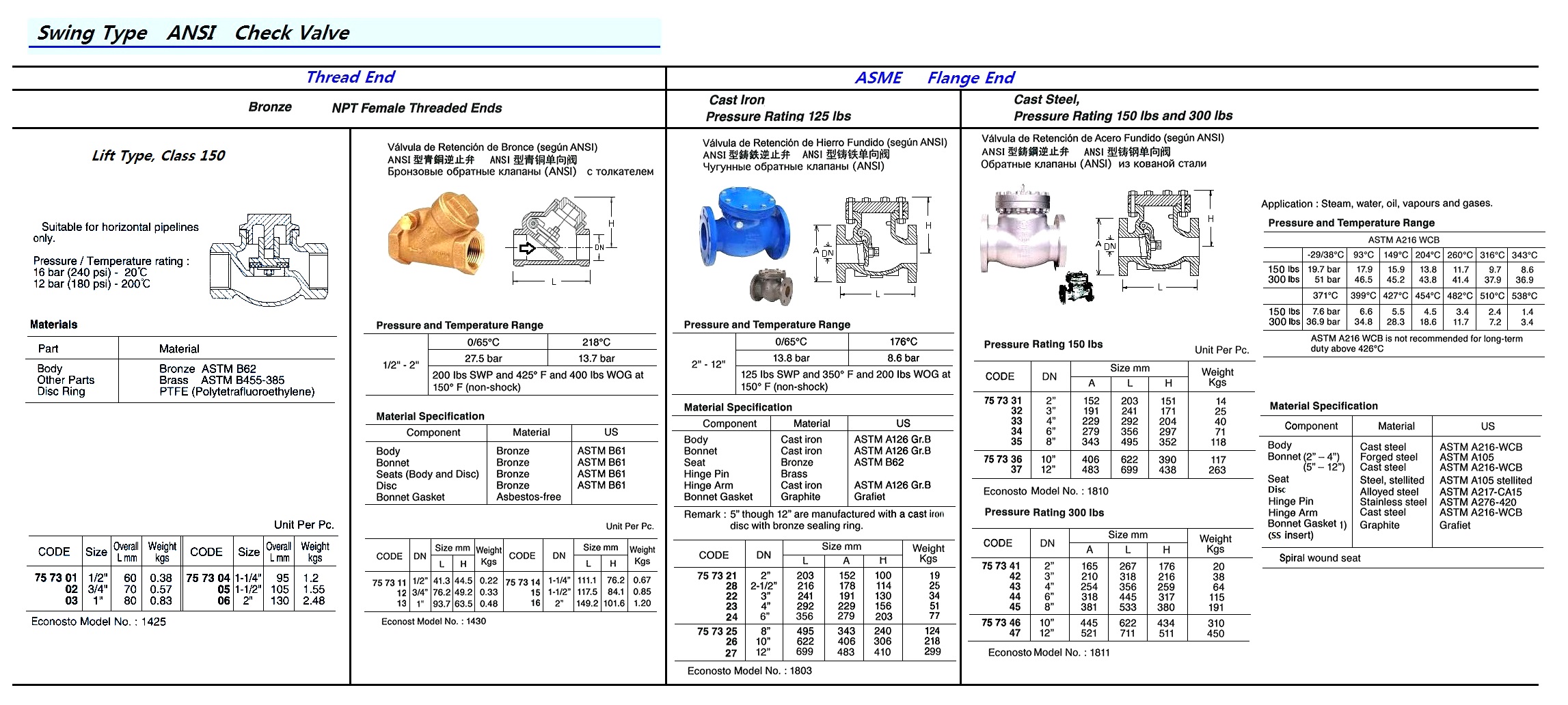

产品规格 Cast steel swing type check valves, stainless steel seat, pressure rating 150 lbs and 300 lbs, straight pattern, full bore, bolted bonnet, flange sizes acc. to ASME B 16.5 (“raised face – smooth finish”) and face to face acc. to ASME B16.10. Suitable for horizontal and vertical (upward flow) installation. On request, supplied including EN 10204 3.1B material and test certificate. Application: Steam, water, oil, vapours and gases.
中文汉化 757333 检查阀 ANSI150 铸钢，法兰摆动类型 #1810 4英寸铸钢摆动式检查阀，不锈钢座，压力等级为150磅和300磅，直通型，全通径，带螺栓紧固的盖子，法兰尺寸根据ASME B 16.5（“凸面-光洁表面”）和面对面根据ASME B16.10标准。适用于水平和垂直（向上流动）安装。如需，可提供EN 10204 3.1B材料证明和测试证书。应用：蒸汽、水、油、蒸气和气体。
