757337 CHECK VALVE ANSI150 CAST STEEL, FLANGED SWING TYPE #1810 12"

757337 CHECK VALVE ANSI150 CAST STEEL, FLANGED SWING TYPE #1810 12
规格参数 参数值
IMPA编码 757337
产品单位 PCE

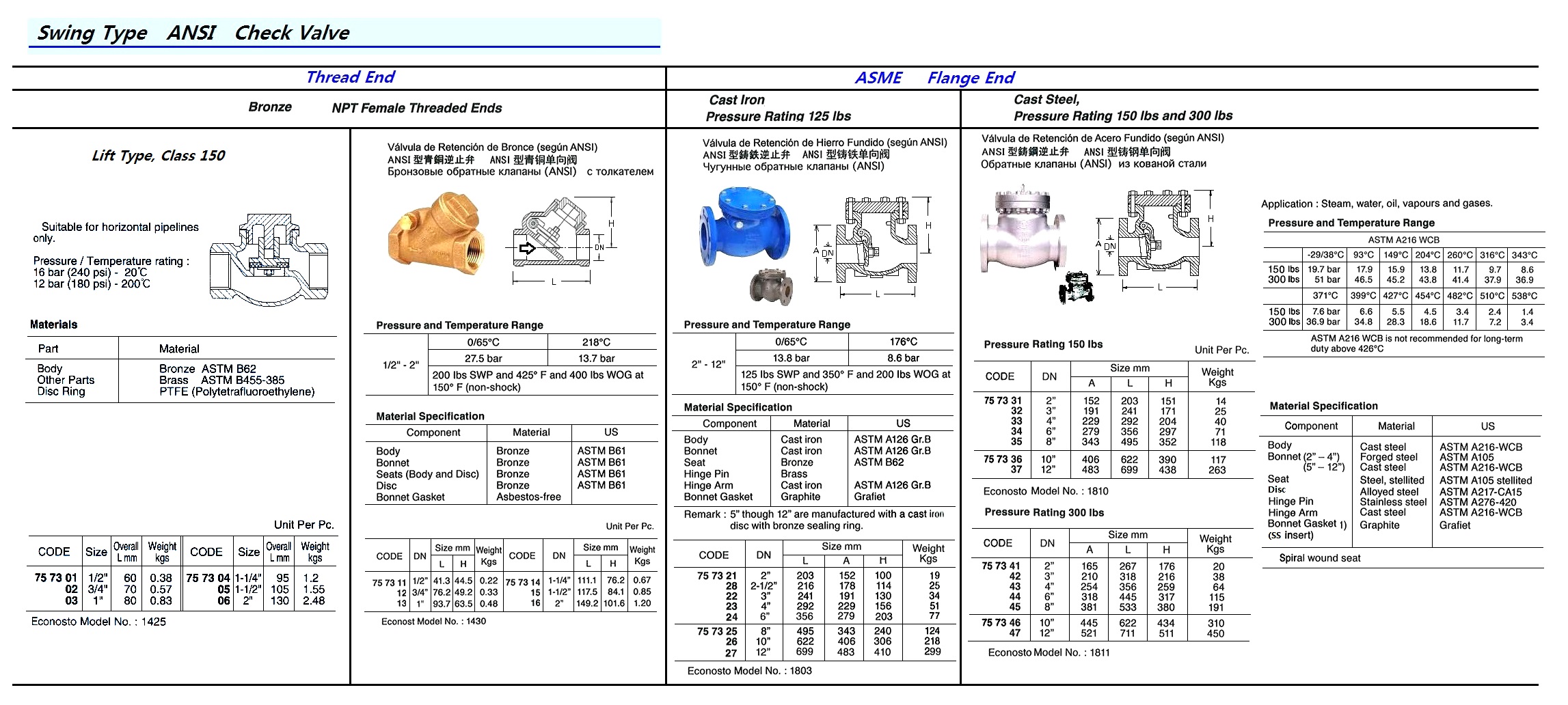

产品规格 Cast steel swing type check valves, stainless steel seat, pressure rating 150 lbs and 300 lbs, straight pattern, full bore, bolted bonnet, flange sizes acc. to ASME B 16.5 (“raised face – smooth finish”) and face to face acc. to ASME B16.10. Suitable for horizontal and vertical (upward flow) installation. On request, supplied including EN 10204 3.1B material and test certificate. Application: Steam, water, oil, vapours and gases.
中文汉化 757337 12
