757343 CHECK VALVE ANSI300 CAST STEEL, FLANGED SWING TYPE #1811 4"

757343 CHECK VALVE ANSI300 CAST STEEL, FLANGED SWING TYPE #1811 4
规格参数 参数值
IMPA编码 757343
产品单位 PCE

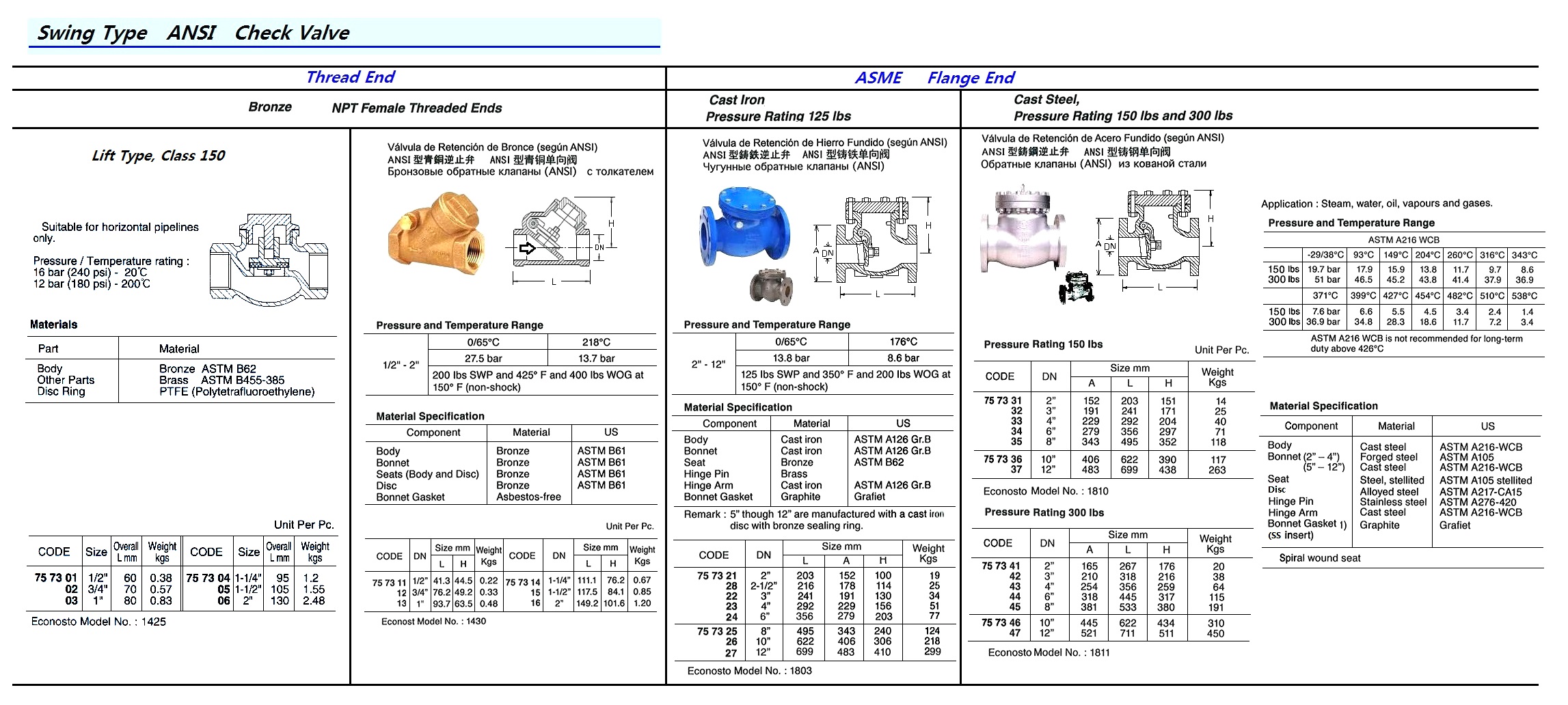

产品规格 Cast steel swing type check valves, stainless steel seat, pressure rating 150 lbs and 300 lbs, straight pattern, full bore, bolted bonnet, flange sizes acc. to ASME B 16.5 (“raised face – smooth finish”) and face to face acc. to ASME B16.10. Suitable for horizontal and vertical (upward flow) installation. On request, supplied including EN 10204 3.1B material and test certificate. Application: Steam, water, oil, vapours and gases.
中文汉化 757343截止阀ANSI300铸钢，法兰摆动类型#1811 4英寸铸钢摆动式截止阀，不锈钢座，压力等级为150磅和300磅，直线型，全通径，螺栓连接盖，法兰尺寸根据ASME B 16.5（“凸面-光面”）和面对面根据ASME B16.10标准。 适用于水平和垂直（向上流动）安装。 如有需求，可提供EN 10204 3.1B材料证书和测试报告。 应用：蒸汽、水、油、蒸汽和气体。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
