757344 CHECK VALVE ANSI300 CAST STEEL, FLANGED SWING TYPE #1811 6"

757344 CHECK VALVE ANSI300 CAST STEEL, FLANGED SWING TYPE #1811 6
规格参数 参数值
IMPA编码 757344
产品单位 PCE

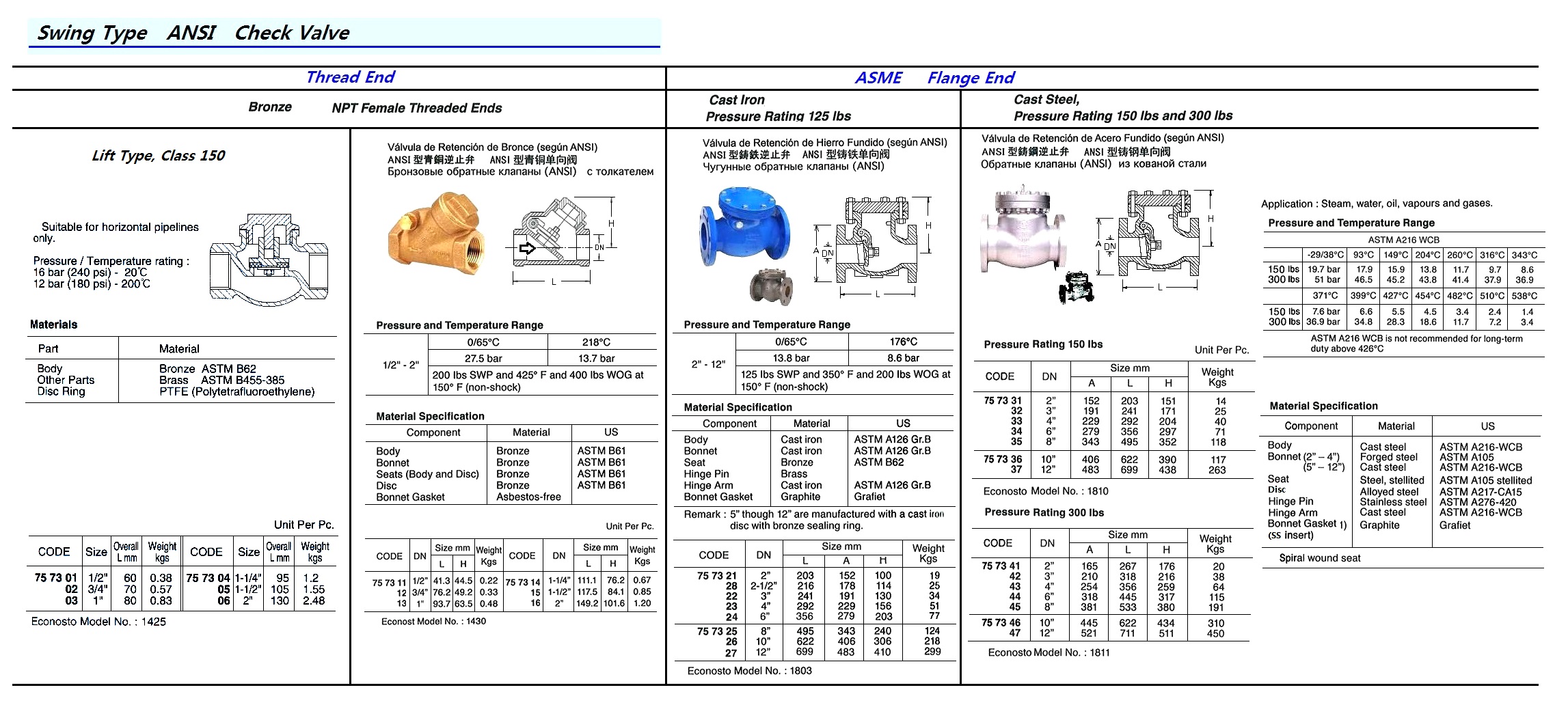

产品规格 Cast steel swing type check valves, stainless steel seat, pressure rating 150 lbs and 300 lbs, straight pattern, full bore, bolted bonnet, flange sizes acc. to ASME B 16.5 (“raised face – smooth finish”) and face to face acc. to ASME B16.10. Suitable for horizontal and vertical (upward flow) installation. On request, supplied including EN 10204 3.1B material and test certificate. Application: Steam, water, oil, vapours and gases.
中文汉化 757344 检查阀 ANSI300 铸钢，焊接式摆动类型 #1811 6英寸铸钢摆动式检查阀，不锈钢座，压力等级为150磅和300磅，直线型，全通径，带螺栓连接的罩帽，法兰尺寸根据ASME B 16.5（“凸面-光面”）和面对面根据ASME B16.10标准。适用于水平和垂直（向上流动）安装。如需，可提供EN 10204 3.1B材料证书和测试报告。应用：蒸汽、水、油、蒸汽和气体。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
