794333 CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 16MM2X1C 96AMP

794333 CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 16MM2X1C 96AMP
规格参数 参数值
IMPA编码 794333
产品单位 MTR

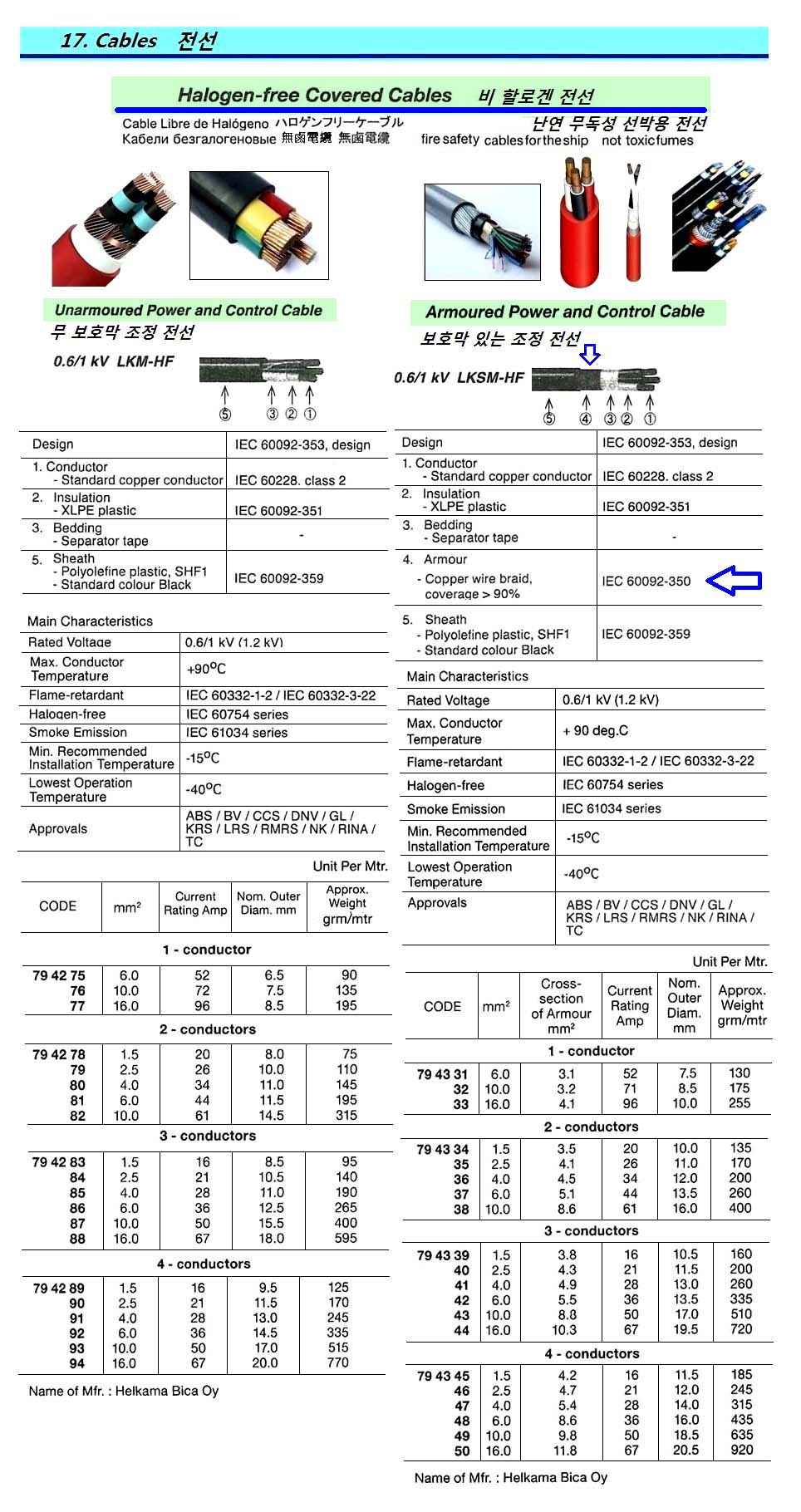

产品规格 The remarkably improved fire safety and environmental friendly cables for the ship, not emitting toxic burning fumes or thick smoke owing to Halogen-free insulation cover. Halogen-free refers to the absence of Halogens, such as Chlorine and Fluorine, and they doesn’t emit any harmful Hydraulic Chloride gas while existing PVC (Polyvinyl Chlorine) dose. In addition to above attractive features, the Halogen-free covered cable reduces cable weight and size to a minimum and still maintain quality, enabling easy installation. The Halogen-free range of cables are frame-retardant (IEC 60332-3). The following designations are used for insulation materials and sheathing materials, and all materials are halogen-free; Insulation : XLPE stands for Cross-linked Polyethylene compound, and it has excellent mechanical and electrical characteristics. Sheathing: The designation SHF1 stands for Thermoplastic compound, and this material is Halogen-free, highly flame-retardant and has low smoke emission. The listed cables are for fixed installation on all areas and on open deck in ships. However, if the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.
中文汉化 794333 非卤素铠装电缆，LKSM-HF，0.6/1KV，16mm²x1C，96A 这是专为船舶设计的具有显著改进的消防安全和环保特性电缆，由于采用无卤素绝缘材料，燃烧时不产生有毒烟雾或浓烟。
