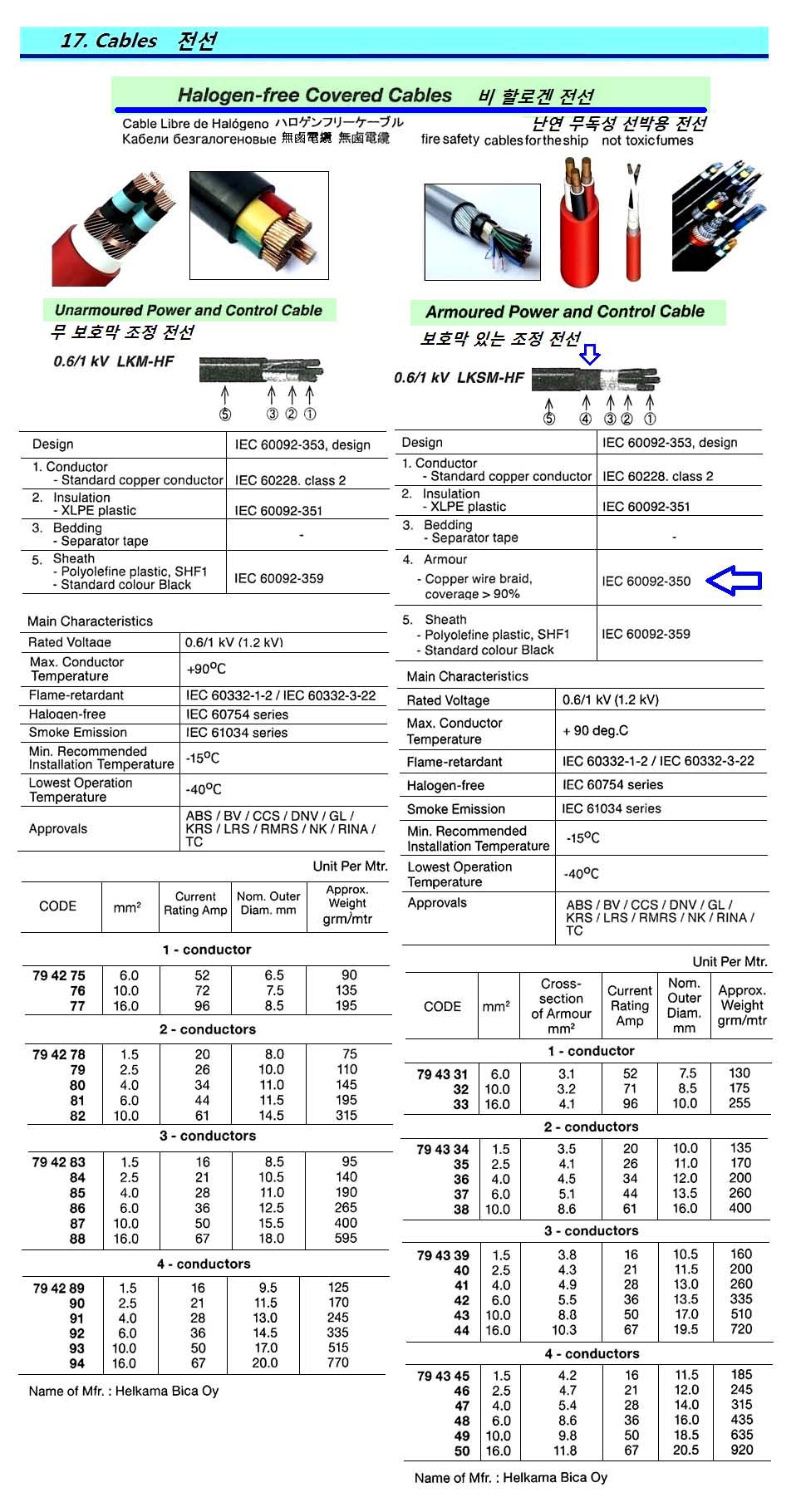

794337 CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 6MM2X2C 44AMP

794337 CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 6MM2X2C 44AMP
规格参数 参数值
IMPA编码 794337
产品单位 MTR
产品规格 The remarkably improved fire safety and environmental friendly cables for the ship, not emitting toxic burning fumes or thick smoke owing to Halogen-free insulation cover. Halogen-free refers to the absence of Halogens, such as Chlorine and Fluorine, and they doesn’t emit any harmful Hydraulic Chloride gas while existing PVC (Polyvinyl Chlorine) dose. In addition to above attractive features, the Halogen-free covered cable reduces cable weight and size to a minimum and still maintain quality, enabling easy installation. The Halogen-free range of cables are frame-retardant (IEC 60332-3). The following designations are used for insulation materials and sheathing materials, and all materials are halogen-free; Insulation : XLPE stands for Cross-linked Polyethylene compound, and it has excellent mechanical and electrical characteristics. Sheathing: The designation SHF1 stands for Thermoplastic compound, and this material is Halogen-free, highly flame-retardant and has low smoke emission. The listed cables are for fixed installation on all areas and on open deck in ships. However, if the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.
中文汉化 794337电缆,无卤素,装甲,LKSM-HF 0.6/1KV 6mm2X2C 44AMP 这是为船舶设计的性能显著提升的防火和环保电缆，由于使用了无卤素绝缘材料，它不会释放有毒的燃烧烟雾或浓厚的烟雾。 无卤素指的是不含氯、氟等元素，与传统的聚氯乙烯(PVC)相比，即使在燃烧时也不会产生有害的氢氯酸气体。 除了上述优点，无卤素电缆通过最小化重量和尺寸，同时保持优质特性，便于安装。这种电缆具有阻燃特性（符合IEC 60332-3标准）。 绝缘材料使用了交联聚乙烯(XLPE)，这是一种具有出色机械和电气特性的化合物。外层使用了热塑性材料SHF1，它本身是无卤素的，具有高度阻燃性和低烟排放。 这些电缆适用于船舶所有区域和甲板的固定安装。然而，如果电缆暴露在阳光下，建议使用防护覆盖或选择黑色外皮的电缆。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
