332141 TAPE PIPE IDENTIFICATION #2141, ISO 14726 BLUE W50MMX30MTR

332141 TAPE PIPE IDENTIFICATION #2141, ISO 14726 BLUE W50MMX30MTR
规格参数 参数值
IMPA编码 332141
产品单位 NRL

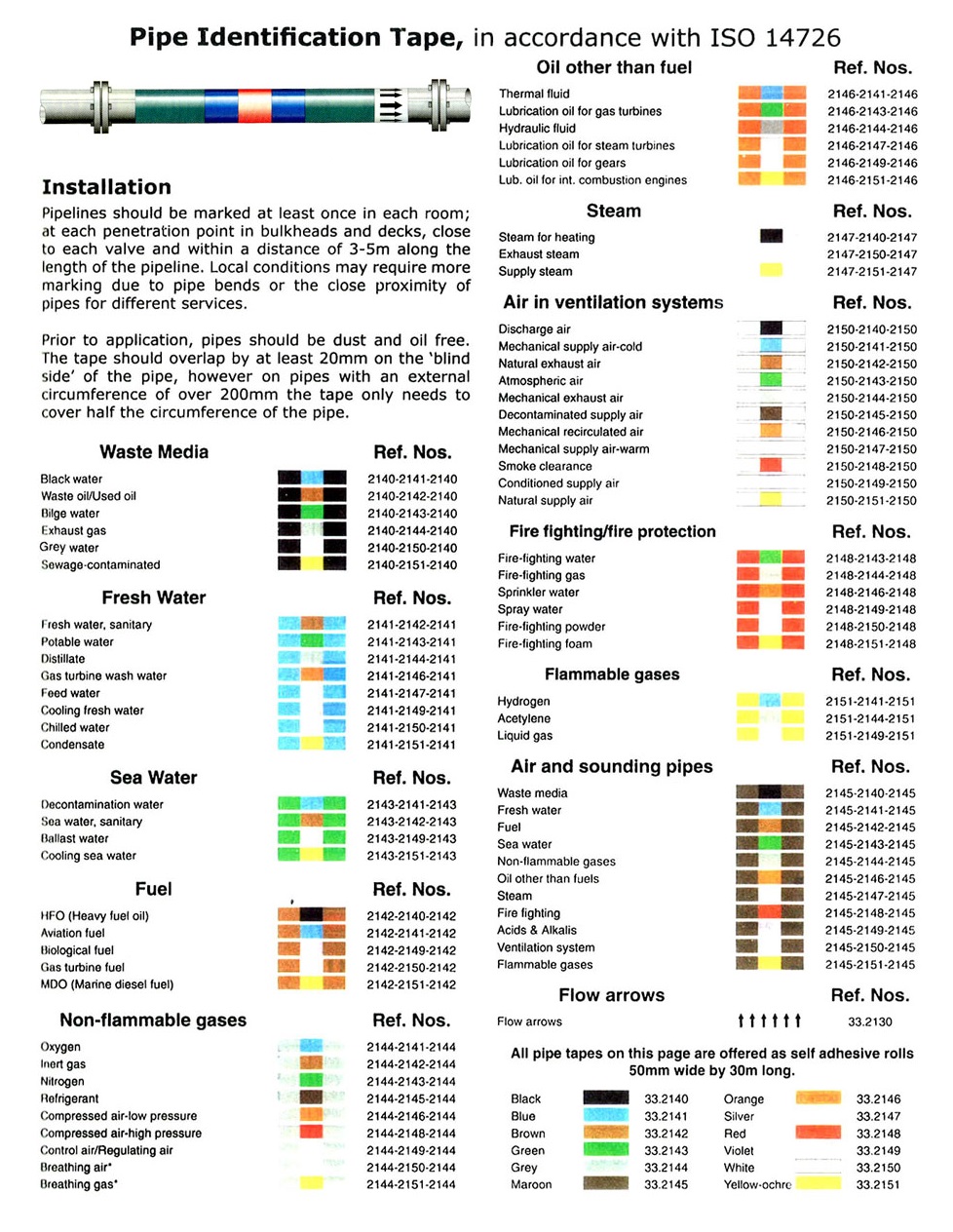

产品规格 Pipelines should be marked at least once in each room; at each penetration point in bulkheads and decks, close to each valve and within a distance of 3 - 5m along the length of the pipeline. Local conditions may require more marking due to pipe bends or the close proximity of pipes for different services. Prior to application, pipes should be dust and oil free. The tape should overlap by at least 20mm on the ‘blind side’ of the pipe, however on pipes with an external circumference of over 200mm the tape only needs to cover half the circumference of the pipe.
中文汉化 332141 胶带管道标识#2141，ISO 14726 蓝色 W50mmx30m 需要在每个房间至少标记一次管道；在隔板和甲板的每个穿透点附近，靠近每个阀门，并且沿着管道长度3-5米范围内。根据局部条件，可能需要因管道弯曲或不同服务的管道紧密相邻而增加标记。在应用之前，管道应清洁无尘无油。胶带应至少在管道的“盲侧”上重叠20毫米，但对于外径超过200毫米的管道，胶带只需覆盖管道周长的一半。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
