332148 TAPE PIPE IDENTIFICATION #2148, ISO 14726 RED W50MMX30MTR

规格参数	参数值
IMPA编码	332148
产品单位	NRL

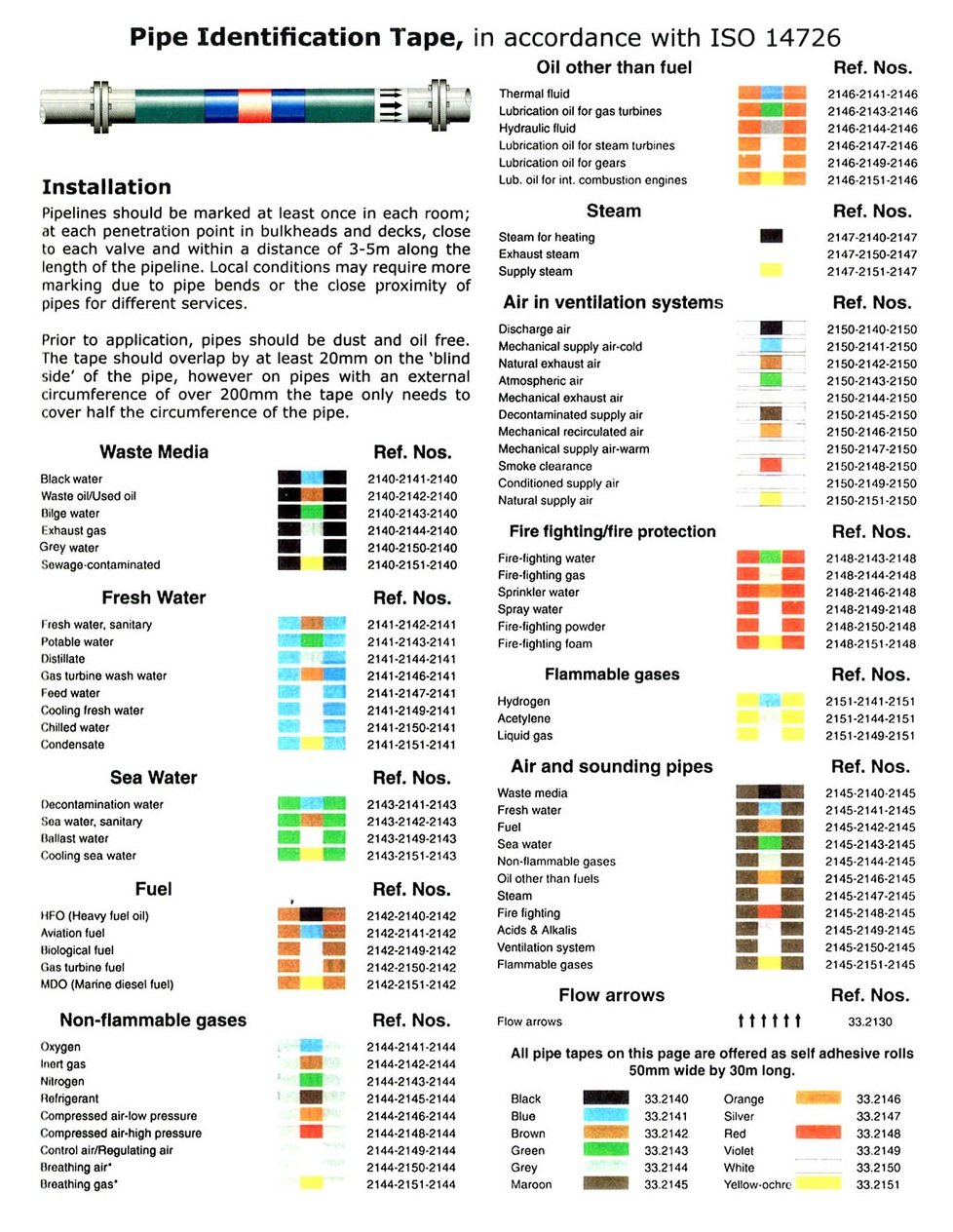

产品规格	Pipelines should be marked at least once in each room; at each penetration point in bulkheads and decks, close to each valve and within a distance of 3 - 5m along the length of the pipeline. Local conditions may require more marking due to pipe bends or the close proximity of pipes for different services. Prior to application, pipes should be dust and oil free. The tape should overlap by at least 20mm on the ‘blind side’ of the pipe, however on pipes with an external circumference of over 200mm the tape only needs to cover half the circumference of the pipe.
中文汉化	332148 编号2148，ISO 14726 红色，宽50mmx30米需要在每个房间至少标记一次；在舱壁和甲板的每个穿孔点，靠近每个阀门以及沿着管道长度3-5米范围内。根据局部条件，可能需要增加标记，因为管道弯曲或不同服务的管道紧密相邻。在应用前，管道应清洁无尘无油。标签应在管道的“盲侧”上至少重叠20毫米，但对于外部周长超过200毫米的管道，标签只需覆盖管道的一半周长。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
