332104 TAPE PIPE IDENTIFICATION #2104, BS 1710 YELLOW OCHRE 150MMX30M

332104 TAPE PIPE IDENTIFICATION #2104, BS 1710 YELLOW OCHRE 150MMX30M
规格参数 参数值
IMPA编码 332104
产品单位 NRL

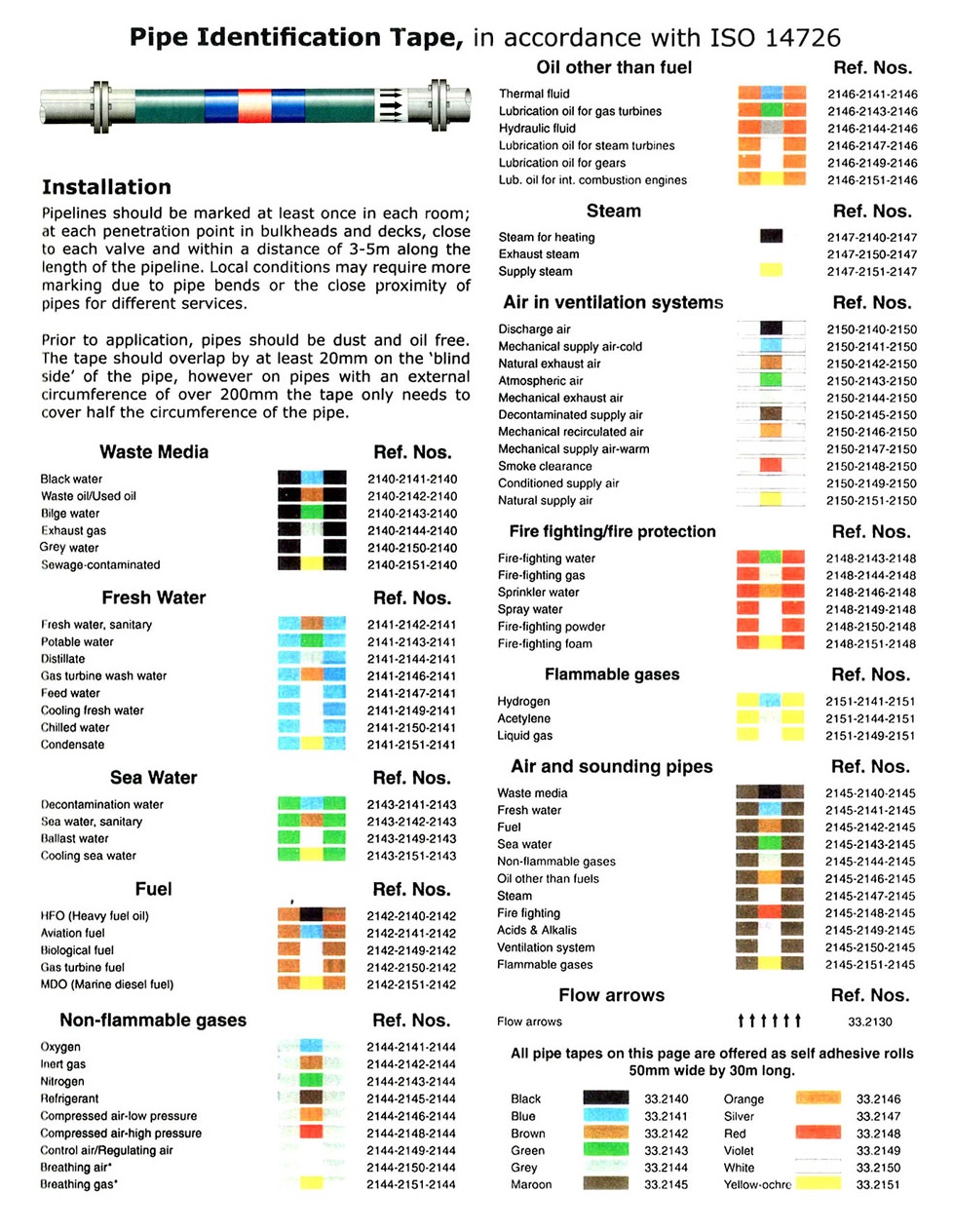

产品规格 Pipelines should be marked at least once in each room; at each penetration point in bulkheads and decks, close to each valve and within a distance of 3 - 5m along the length of the pipeline. Local conditions may require more marking due to pipe bends or the close proximity of pipes for different services. Prior to application, pipes should be dust and oil free. The tape should overlap by at least 20mm on the ‘blind side’ of the pipe, however on pipes with an external circumference of over 200mm the tape only needs to cover half the circumference of the pipe.
中文汉化 332104 标带，管道识别号2104，BS 1710 黄赭色，150mmx30m 管道应在每个房间至少标记一次；在舱壁和甲板的每个穿透点，靠近每个阀门以及沿管道长度3-5米范围内。根据局部条件，由于管道弯曲或不同服务的管道紧密相邻，可能需要增加标记。在应用之前，管道应清洁无尘和无油。标带应在管道的“盲侧”上至少重叠20毫米，但对于外径超过200毫米的管道，标带只需覆盖管道周长的一半。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
