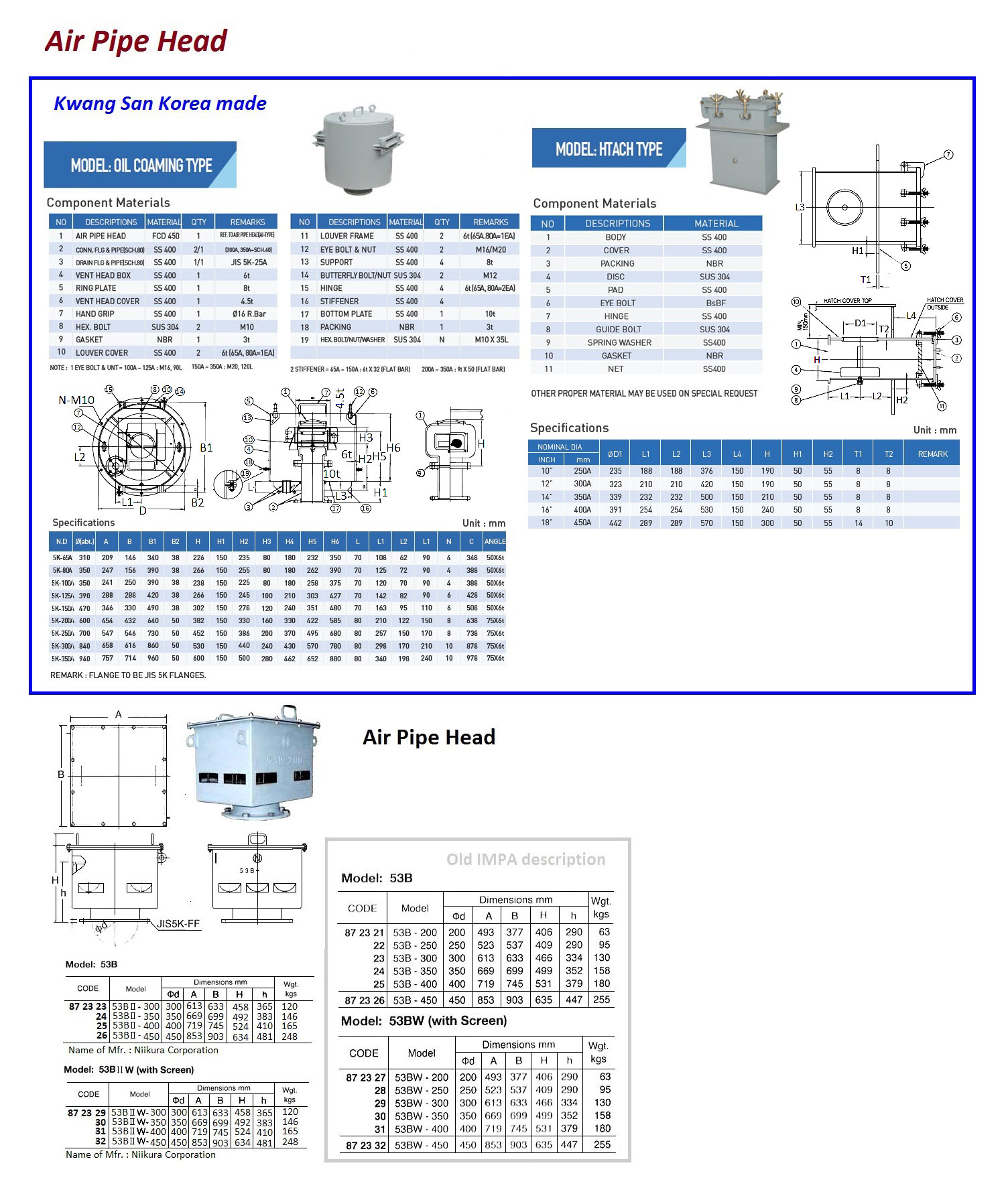

872330 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-350 350MM

872330 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-350 350MM
规格参数 参数值
IMPA编码 872330
产品单位 PCE
产品规格 Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53BⅡW (with Screen)
中文汉化 872330 空气通风头，JIS 5公斤法兰，带有筛网 #53BIIW-350 350毫米 自动关闭系统，适用于压载舱或油罐等。主体由灰铸铁（FC-200）制成。法兰连接规格基于JIS 5公斤/平方厘米的标准。符合国际船级社协会（IACS）统一要求P3（1991），并获得NK、ABS、LRS、DNV和BV的认可。下单时请注明要连接的管头类型。型号：53BⅡW（带筛网）
