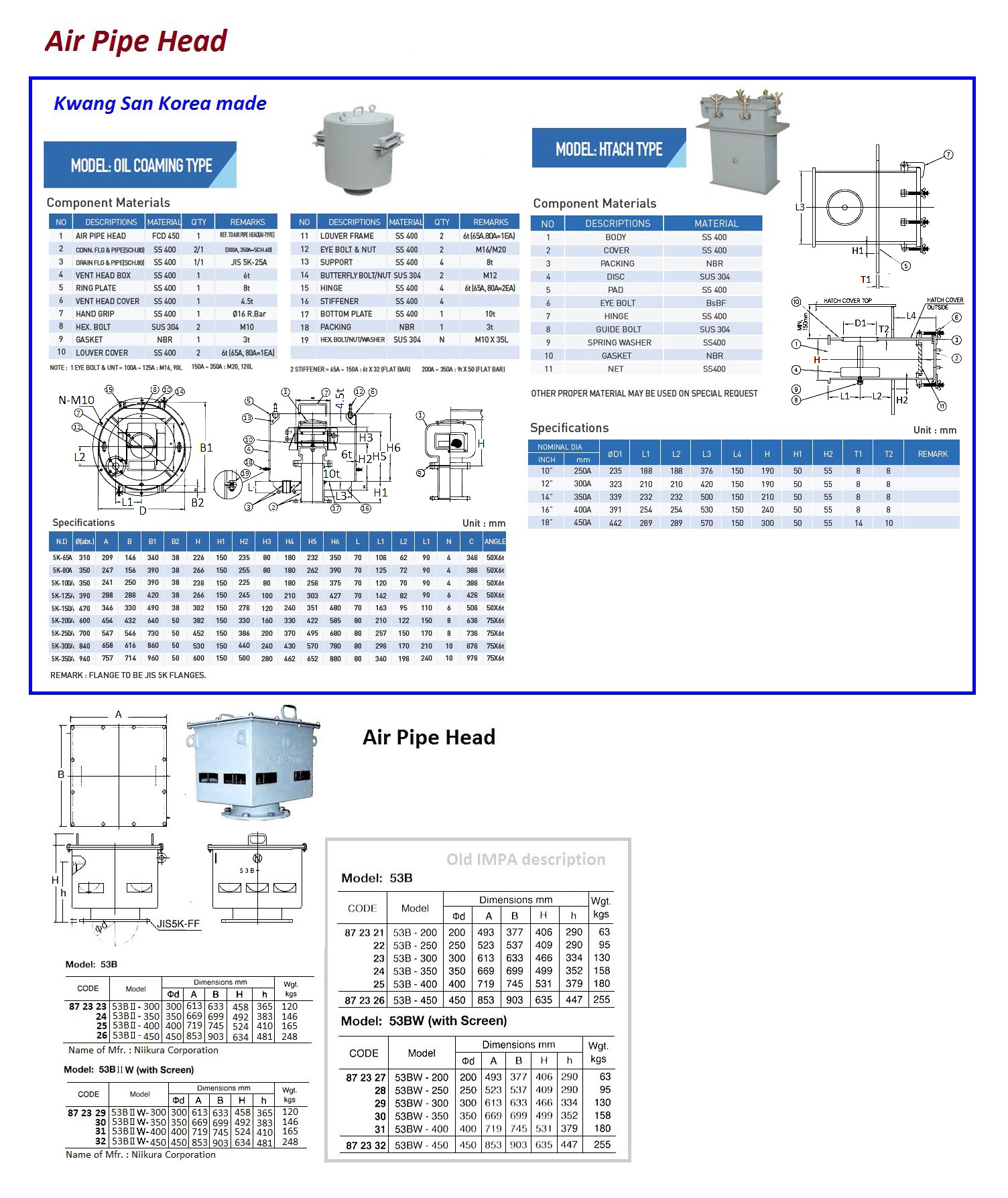

872324 AIR VENT HEAD JIS 5KG FLANGED, #53BII-350 350MM

872324 AIR VENT HEAD JIS 5KG FLANGED, #53BII-350 350MM
规格参数 参数值
IMPA编码 872324
产品单位 PCE
产品规格 Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53B Ⅱ
中文汉化 872324 空气通风头，JIS 5公斤法兰，型号#53BII-350，350毫米。该系统采用浮盘自动关闭，适用于压载舱或油罐等。主体由灰铸铁（FC-200）制成。法兰规格遵循JIS 5公斤/平方厘米的标准。符合国际船级社协会（IACS）统一要求P3（1991），并已获得NK、ABS、LRS、DNV和BV的认证。下单时请注明要连接的管头法兰尺寸。型号：53B II
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
