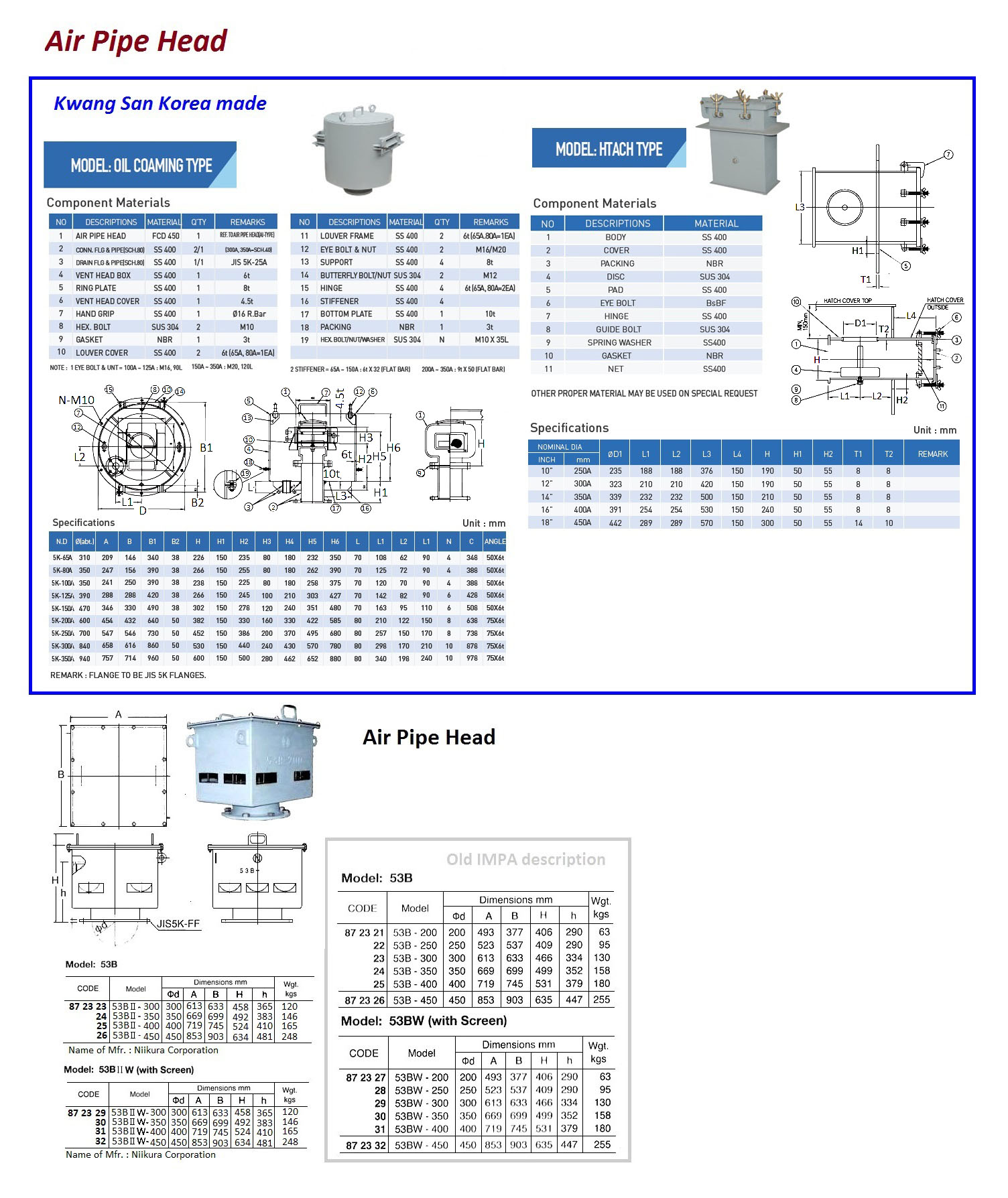

872325 AIR VENT HEAD JIS 5KG FLANGED, #53BII-400 400MM

872325 AIR VENT HEAD JIS 5KG FLANGED, #53BII-400 400MM
规格参数 参数值
IMPA编码 872325
产品单位 PCE
产品规格 Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53B Ⅱ
中文汉化 872325 空气通风口头，JIS 5公斤法兰，型号#53BII-400，400毫米。该系统采用浮盘自动关闭，适用于压载舱或油罐等。主体由灰铸铁（FC-200）制成。法兰规格依据JIS 5公斤/平方厘米标准。符合国际船级社协会（IACS）统一要求P3（1991），并已获得NK、ABS、LRS、DNV和BV的认可。下单时请注明要连接的管头类型及法兰尺寸。型号：53B Ⅱ。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
