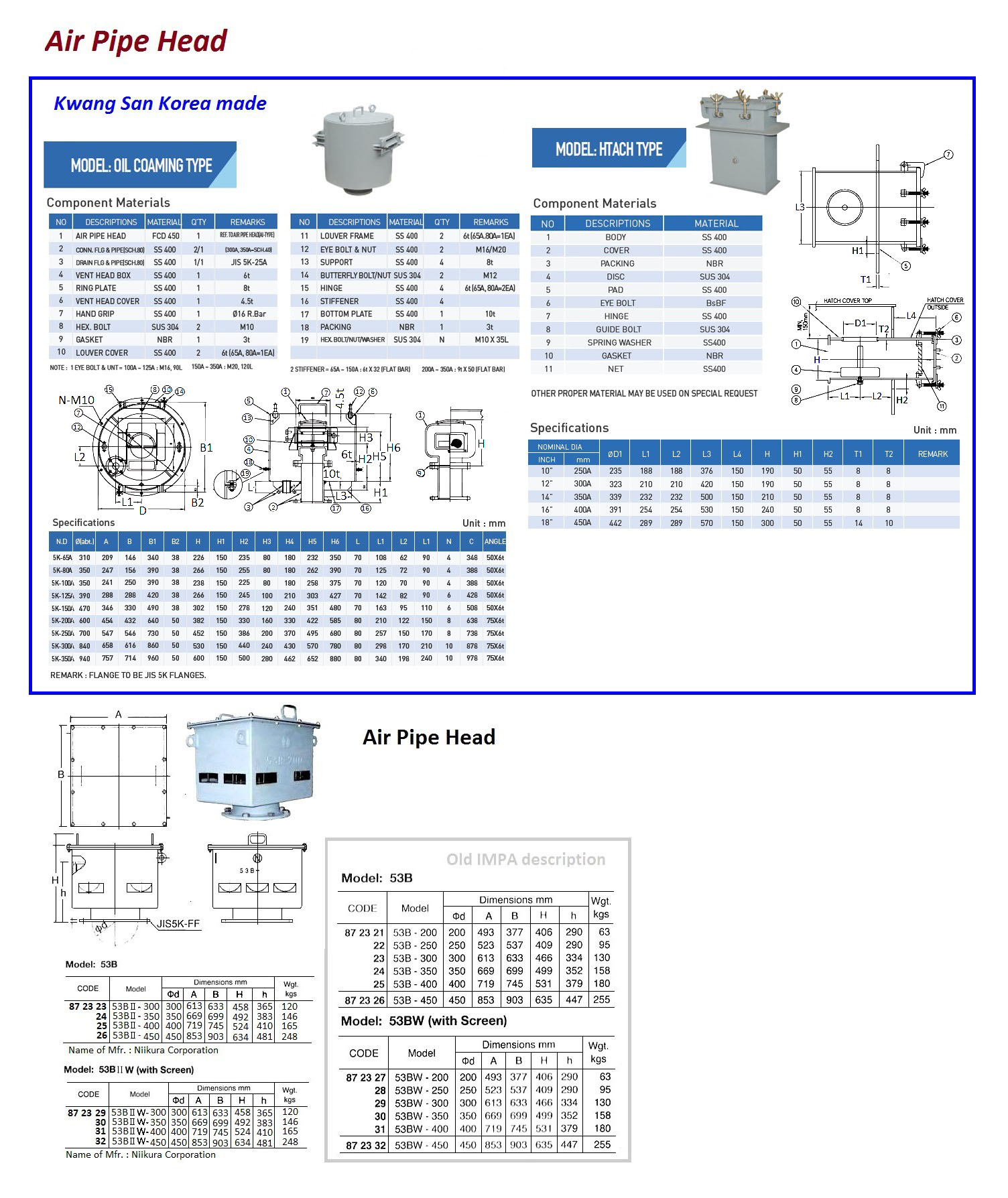

872326 AIR VENT HEAD JIS 5KG FLANGED, #53BII-450 450MM

872326 AIR VENT HEAD JIS 5KG FLANGED, #53BII-450 450MM
规格参数 参数值
IMPA编码 872326
产品单位 PCE
产品规格 Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53B Ⅱ
中文汉化 872326 空气通风口头部，JIS 5公斤法兰，型号#53BII-450，450毫米。该系统采用碟形浮子自动关闭，适用于压载舱或油罐等。主体由灰铸铁（FC-200）制成。法兰规格依据JIS 5公斤/平方厘米标准。符合国际船级社协会（IACS）统一要求P3（1991），并已获得NK、ABS、LRS、DNV和BV的认证。下单时请注明要连接的管头法兰尺寸。型号：53B Ⅱ
