872368 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 200MM

872368 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 200MM
规格参数 参数值
IMPA编码 872368
产品单位 PCE

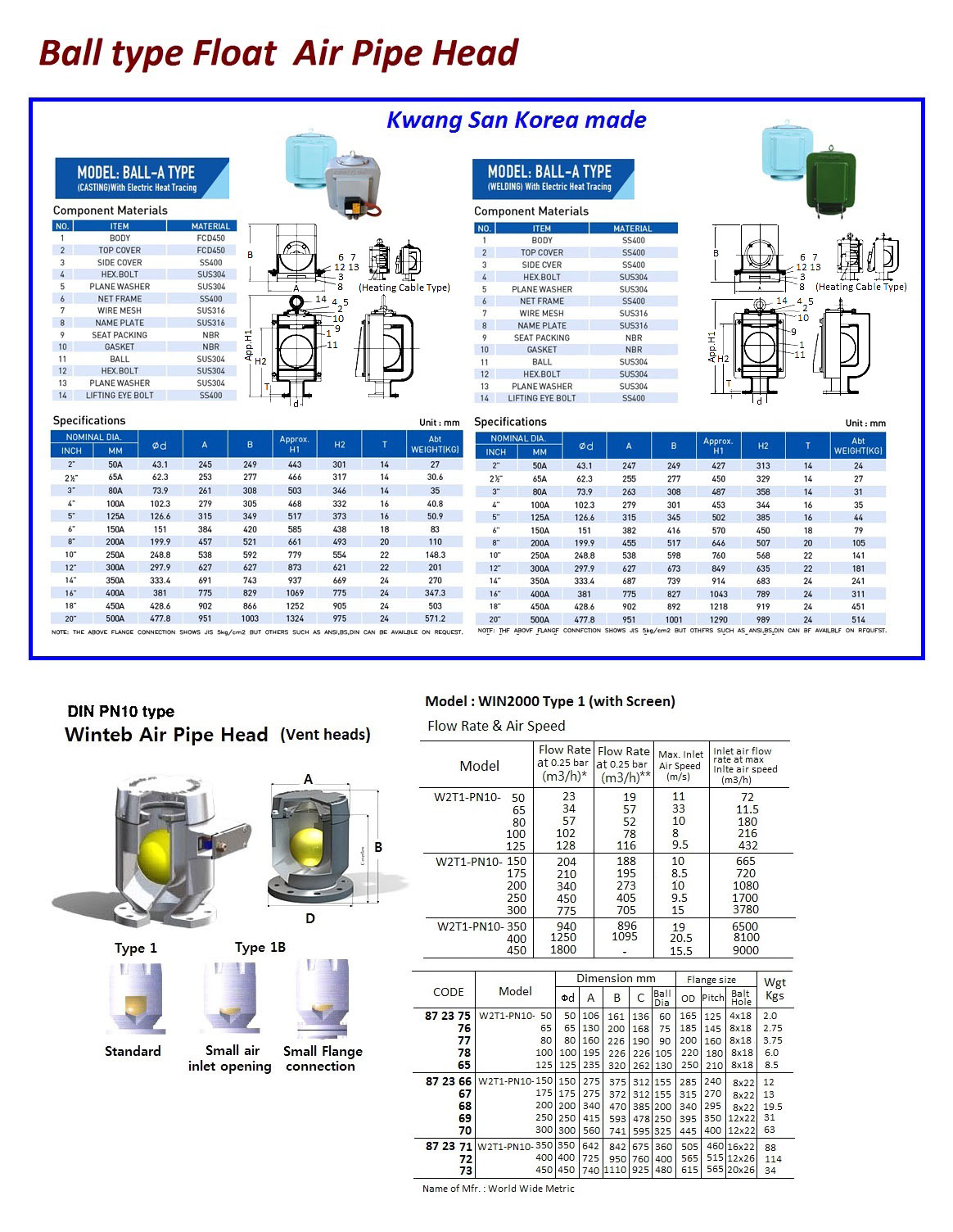

产品规格 WIN2000 Type 1 Air Vent Head, including Screen (mesh 18) with DIN PN10 flange connection. - Made of seawater resistant Aluminum DIN1725, - Non corroding(If fitted according to fitting instructions), - Maintenance free, smallest design available, - Cost saving, - High volume metric flow, - Light weight = less fuel = less CO2 emission. Available three types: Type 1 - Standard, Type 1B - Smaller air inlet opening, Type 1B - Small flange connection. Approved by all major classification societies – ABS, BV, DNV, GL, Lloyd’s, RINA, RMRS, CCS, and NK. Please specify the type of air vent heads, flange size to be connected with the type of pipe head when ordering.
中文汉化 872368 背景：DIN WINTEB PN10, WIN2000 类型 1，带有200mm筛网的WIN2000类型1通风帽，配备DIN PN10法兰连接。- 由抗海水腐蚀的铝合金DIN1725制成，- 如果按照安装说明安装，不生锈，- 维护成本低，设计紧凑，- 节省成本，- 高流量公制流量，- 重量轻=更少燃料=更低的CO2排放。有三种类型可供选择：类型1 - 标准，类型1B - 更小的进气口开口，类型1B - 小型法兰连接。已获得所有主要船级社的认可 - ABS、BV、DNV、GL、劳氏、RINA、RMRS、CCS和NK。下单时请指定通风帽的类型、要连接的法兰尺寸以及管道头的类型。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
