872375 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 65MM

872375 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 65MM
规格参数 参数值
IMPA编码 872375
产品单位 PCE

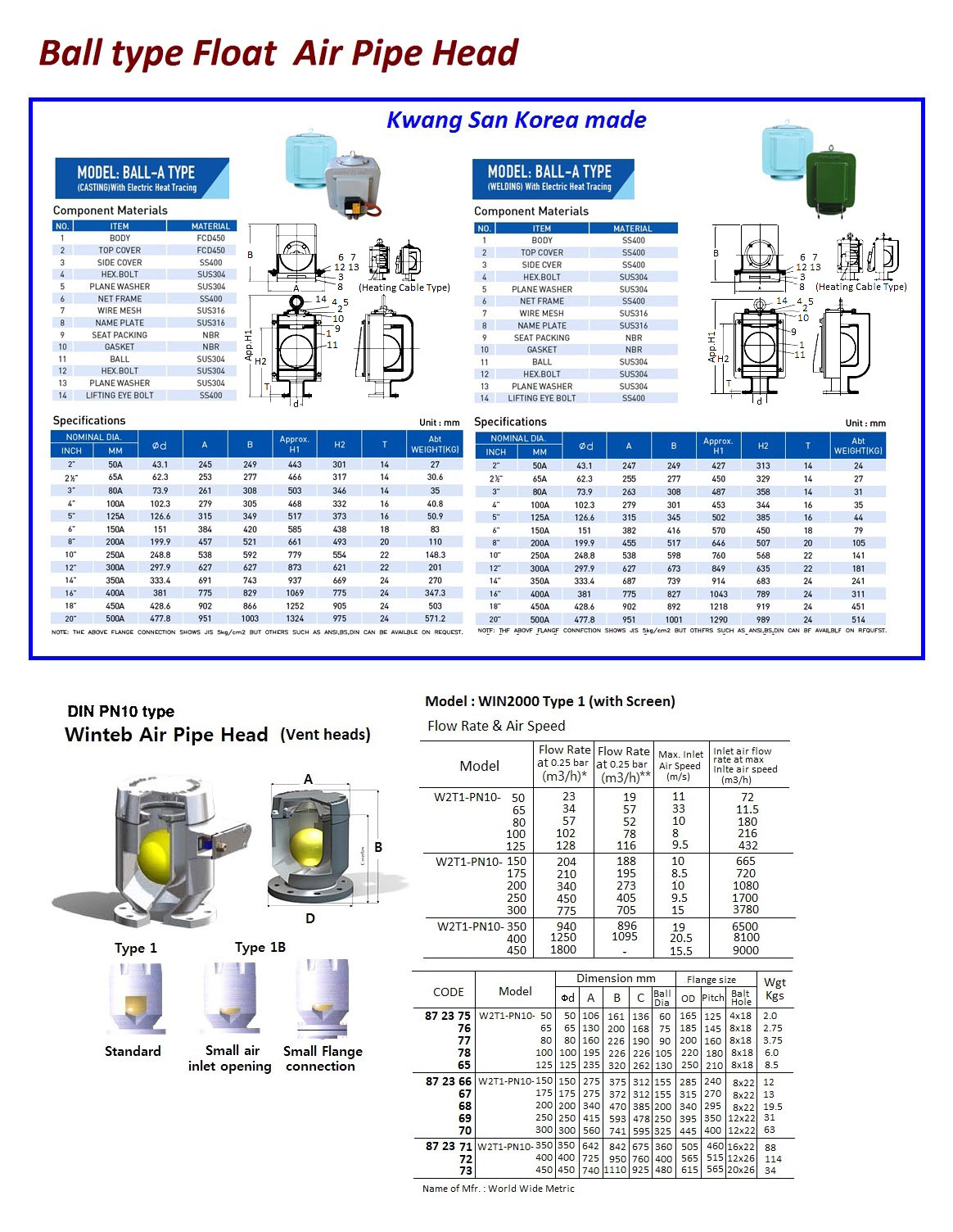

产品规格 WIN2000 Type 1 Air Vent Head, including Screen (mesh 18) with DIN PN10 flange connection. - Made of seawater resistant Aluminum DIN1725, - Non corroding(If fitted according to fitting instructions), - Maintenance free, smallest design available, - Cost saving, - High volume metric flow, - Light weight = less fuel = less CO2 emission. Available three types: Type 1 - Standard, Type 1B - Smaller air inlet opening, Type 1B - Small flange connection. Approved by all major classification societies – ABS, BV, DNV, GL, Lloyd’s, RINA, RMRS, CCS, and NK. Please specify the type of air vent heads, flange size to be connected with the type of pipe head when ordering.
中文汉化 872375 气体通风头 Din WinTEB PN10, Win2000 型号1，带有65毫米筛网的Win2000型号1气体通风头，配备DIN PN10法兰连接。- 采用抗海水腐蚀的铝合金DIN1725制造,- 非腐蚀性（如按照安装说明安装）,- 维护成本低，设计最小化,- 节省成本,- 高流量公制气流,- 重量轻=更少燃料=更低的CO2排放。有三种类型可供选择：类型1 - 标准, 类型1B - 空气入口开口较小, 类型1B - 小型法兰连接。已获得所有主要船级社的认可 - ABS, BV, DNV, GL, Lloyds, RINA, RMRS, CCS, 和NK。在下订单时，请指定所需的气体通风头类型、要连接的法兰尺寸以及管道头类型。
