872376 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 80MM

872376 AIR VENT HEAD DIN WINTEB PN10, WIN2000 TYPE 1 W/SCREEN 80MM
规格参数 参数值
IMPA编码 872376
产品单位 PCE

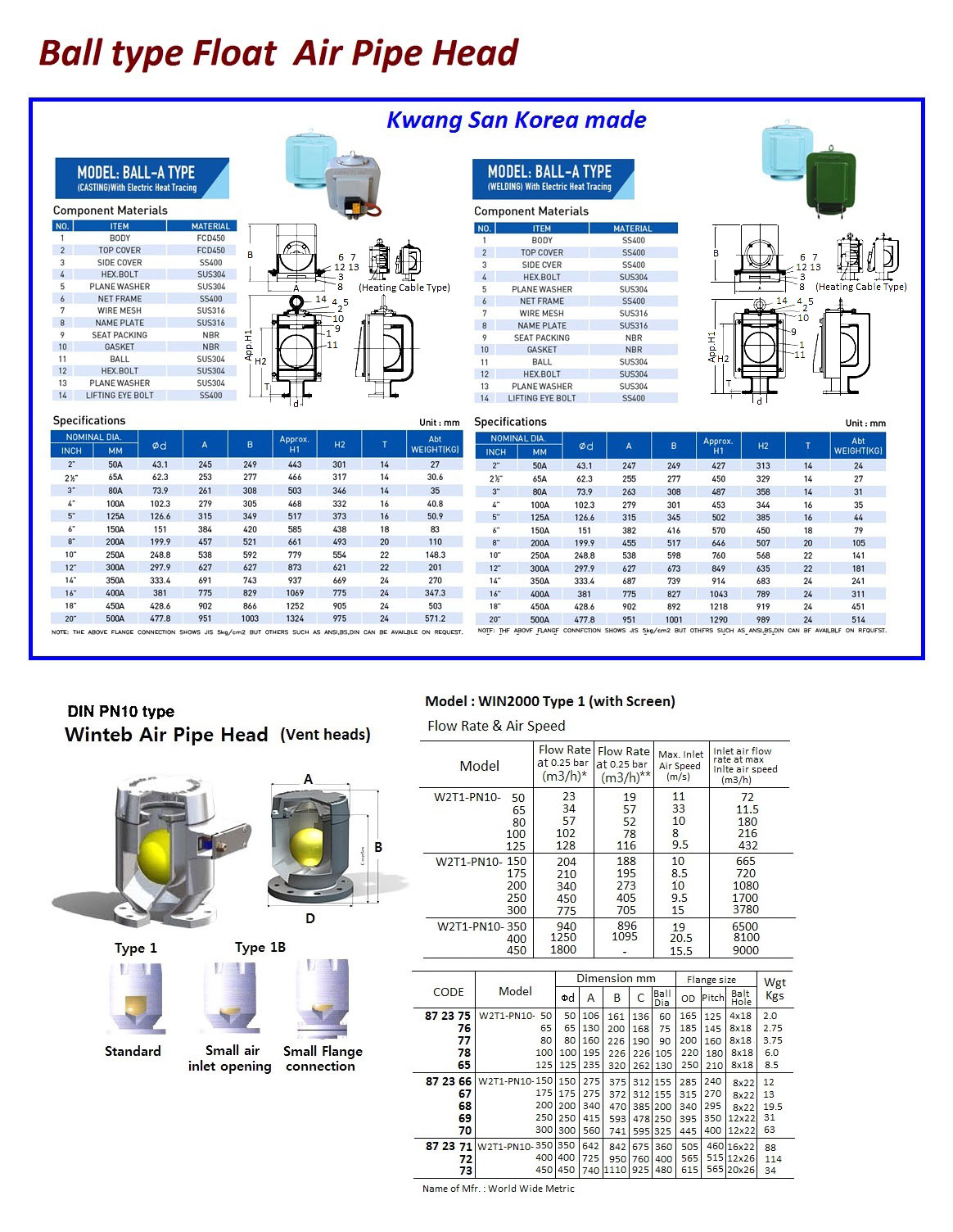

产品规格 WIN2000 Type 1 Air Vent Head, including Screen (mesh 18) with DIN PN10 flange connection. - Made of seawater resistant Aluminum DIN1725, - Non corroding(If fitted according to fitting instructions), - Maintenance free, smallest design available, - Cost saving, - High volume metric flow, - Light weight = less fuel = less CO2 emission. Available three types: Type 1 - Standard, Type 1B - Smaller air inlet opening, Type 1B - Small flange connection. Approved by all major classification societies – ABS, BV, DNV, GL, Lloyd’s, RINA, RMRS, CCS, and NK. Please specify the type of air vent heads, flange size to be connected with the type of pipe head when ordering.
中文汉化 872376 防护盖，DIN WinTEB PN10, Win2000 型号1，带有80毫米筛网的Win2000型通风罩，配备DIN PN10法兰连接。 - 采用抗海水腐蚀的DIN 1725铝合金制造，- 如按照安装说明安装，无腐蚀性，- 维护成本低，设计紧凑，- 节省成本，- 高流量公制流量，- 重量轻=更少燃料=更低的CO2排放。 有三种类型可供选择： 型号1 - 标准型，型号1B - 空气入口开口较小，型号1B - 小型法兰连接。 已获得所有主要船级社的认可，包括ABS、BV、DNV、GL、劳氏船级社、RINA、RMRS、CCS和NK。 在下订单时，请指定所需的通风罩类型、法兰尺寸以及与管道头的连接方式。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
