652101 THERMOMETER SIKA 174B 110X30MM, PT1/2 -30-50DEG.C 30MM-STEM

652101 THERMOMETER SIKA 174B 110X30MM, PT1/2 -30-50DEG.C 30MM-STEM
规格参数 参数值
IMPA编码 652101
产品单位 PCE

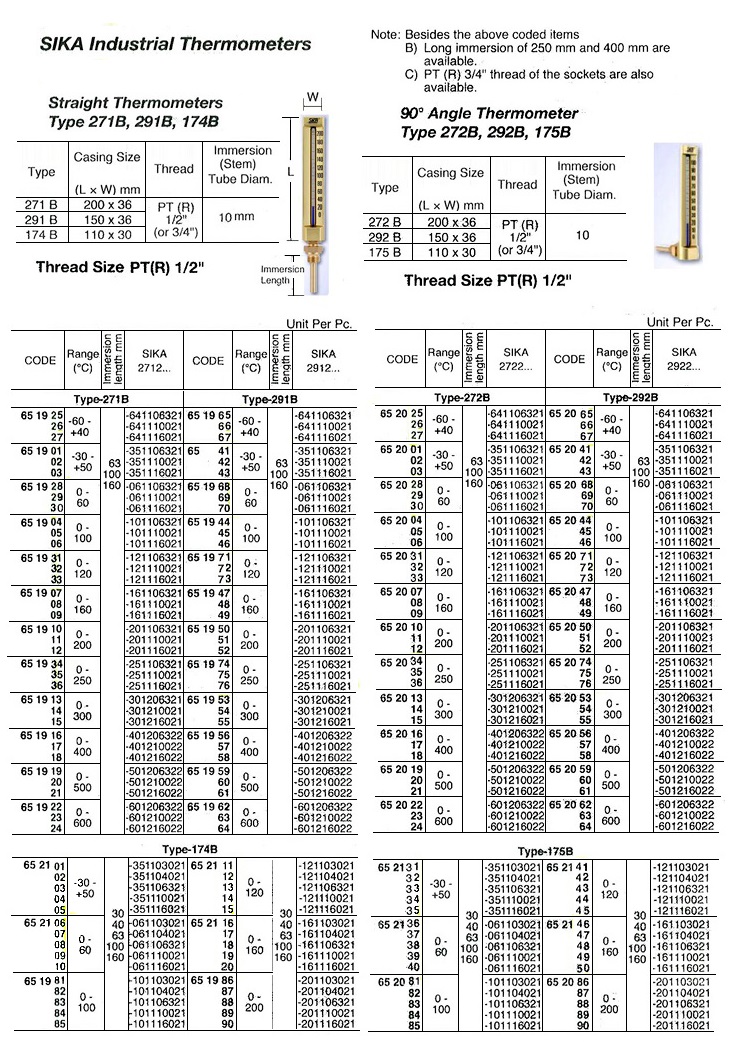

产品规格 A wide variety of Sika thermometers are available. The most widely carried, standard types are listed below with their respective specifications. The thermometer casings are finished in anodized gold colour. Standard models have the graduated readings listed on the right hand side and the surface is coated for protection from outside elements. Straight Thermometers Type 271B, 291B, 174B: Threaded sockets with a solid hexagonal nut. Adjustable to any desired viewing position and locked by brass nut, spanner size 22 mm. Thermometers with a measuring range from -60oC to +250oC have a blue fluid indicator and thermometers with ranges above 250oC work with mercury indicators. Immersion Tubes, pockets Standard: brass for temperatures up to 250oC, for temperatures above 250oC steel. When ordering, specify thread size as well as type, range and immersion stem length, or SIKA's catalogue number. As to thread sizes of the socket the most common PT (R) 1/2" is applied to the following coded items.
中文汉化 652101 Sika牌174B型温度计，尺寸为110x30mm，PT1/2 -30-50°C，30mm直杆。我们提供多种Sika温度计，以下是常见标准型号及其规格。温度计外壳采用阳极氧化金色处理。标准型号在右侧标有刻度，表面涂覆以防护外部环境。类型为271B、291B和174B的直杆温度计：带有实心六角螺母的螺纹插槽，可调整至所需观察角度，并由22mm直径黄铜螺帽锁定。-60°C至+250°C范围的温度计使用蓝色液体指示，高于250°C的则采用水银指示。标准嵌入式管或套筒：低温至250°C用黄铜，高温以上用钢。下订单时，请注明螺纹尺寸、类型、量程以及浸没杆长度，或直接参考Sika的产品目录。对于插槽的螺纹尺寸，最常见的PT（R）1/2
