652104 THERMOMETER SIKA 174B 110X30MM, PT1/2 -30-50DEG.C 100MM-STEM

652104 THERMOMETER SIKA 174B 110X30MM, PT1/2 -30-50DEG.C 100MM-STEM
规格参数 参数值
IMPA编码 652104
产品单位 PCE

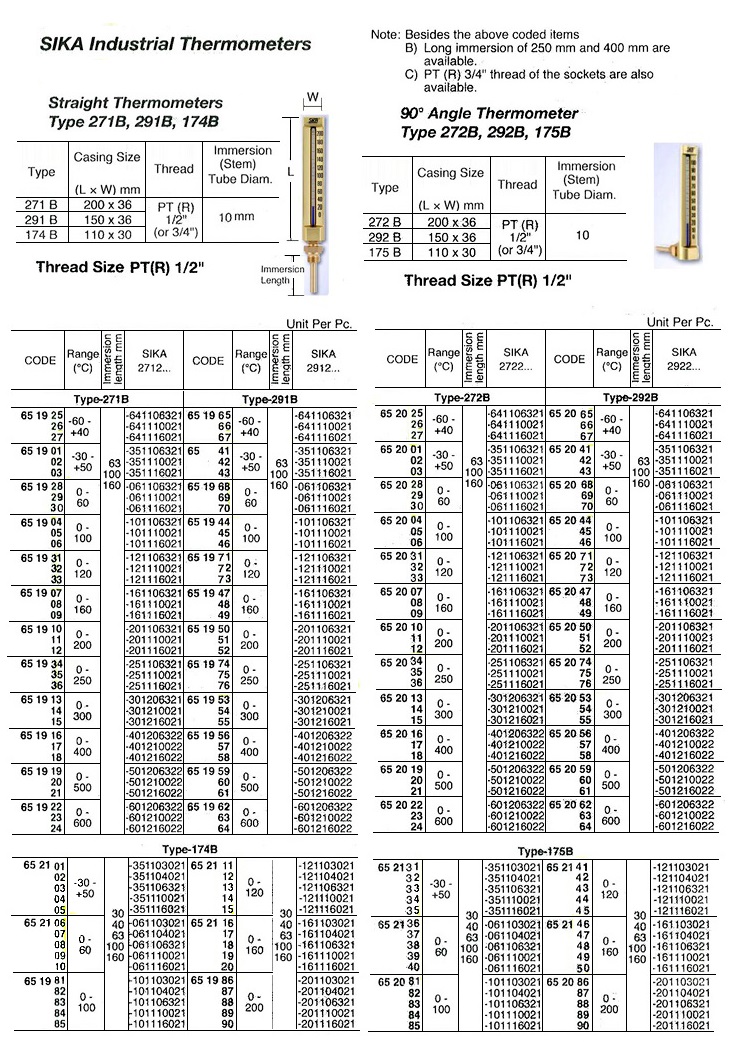

产品规格 A wide variety of Sika thermometers are available. The most widely carried, standard types are listed below with their respective specifications. The thermometer casings are finished in anodized gold colour. Standard models have the graduated readings listed on the right hand side and the surface is coated for protection from outside elements. Straight Thermometers Type 271B, 291B, 174B: Threaded sockets with a solid hexagonal nut. Adjustable to any desired viewing position and locked by brass nut, spanner size 22 mm. Thermometers with a measuring range from -60oC to +250oC have a blue fluid indicator and thermometers with ranges above 250oC work with mercury indicators. Immersion Tubes, pockets Standard: brass for temperatures up to 250oC, for temperatures above 250oC steel. When ordering, specify thread size as well as type, range and immersion stem length, or SIKA's catalogue number. As to thread sizes of the socket the most common PT (R) 1/2" is applied to the following coded items.
中文汉化 652104 施克仕温标器 174B，110x30毫米，PT1/2 -30-50°C，100毫米-杆 有各种各样的施克仕温度计可供选择。我们主要提供和标准型号如下，附带各自规格。 温度计外壳采用阳极氧化金色处理。 标准型号的读数在右侧列出，并且表面涂覆以保护免受外部环境影响。 直型温度计类型271B、291B、174B： 带有螺纹插槽和实心六角螺母。 可调整至任何所需的观察位置，并通过黄铜螺帽（规格22毫米）锁定。 测量范围从-60°C到+250°C的温度计使用蓝色液体指示器；测量范围超过250°C的则使用水银指示器。 入浸管、口袋 标准：铜用于温度不超过250°C，高于250°C的用钢制成。 下单时，请同时指定螺纹尺寸、类型、范围和入浸杆长度，或直接引用施克仕的产品目录编号。 对于插槽的螺纹尺寸，最常见的是PT（R）1/2
