652113 THERMOMETER SIKA 174B 110X30MM, PT1/2 0-120DEG.C 63MM-STEM

652113 THERMOMETER SIKA 174B 110X30MM, PT1/2 0-120DEG.C 63MM-STEM
规格参数 参数值
IMPA编码 652113
产品单位 PCE

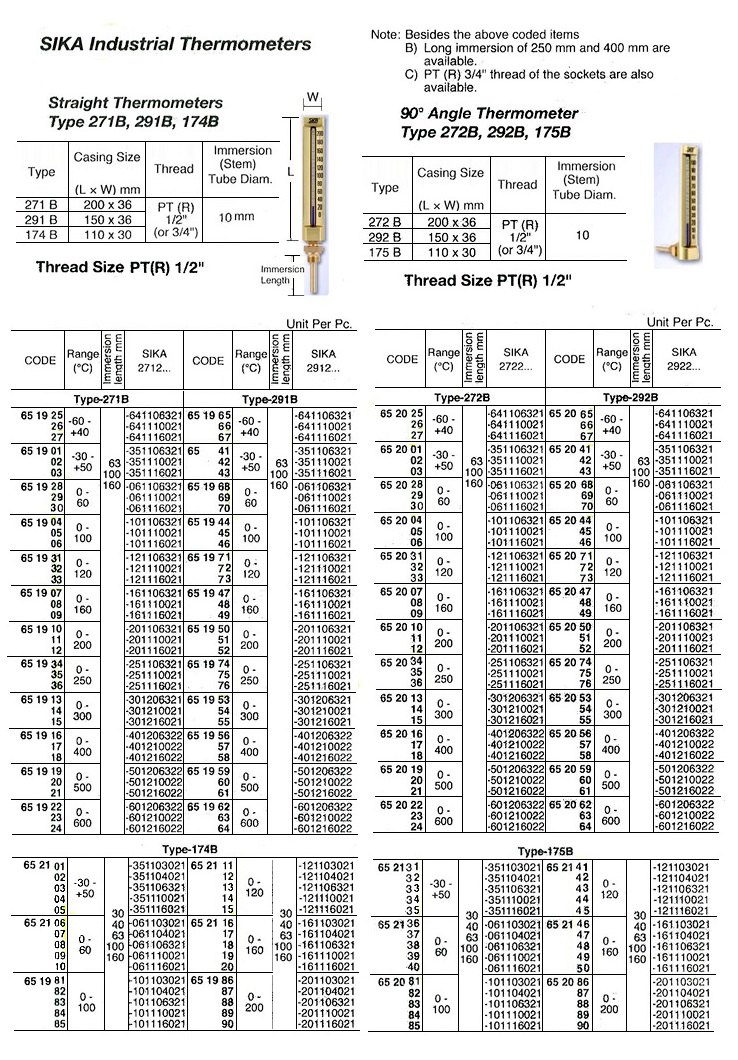

产品规格 A wide variety of Sika thermometers are available. The most widely carried, standard types are listed below with their respective specifications. The thermometer casings are finished in anodized gold colour. Standard models have the graduated readings listed on the right hand side and the surface is coated for protection from outside elements. Straight Thermometers Type 271B, 291B, 174B: Threaded sockets with a solid hexagonal nut. Adjustable to any desired viewing position and locked by brass nut, spanner size 22 mm. Thermometers with a measuring range from -60oC to +250oC have a blue fluid indicator and thermometers with ranges above 250oC work with mercury indicators. Immersion Tubes, pockets Standard: brass for temperatures up to 250oC, for temperatures above 250oC steel. When ordering, specify thread size as well as type, range and immersion stem length, or SIKA's catalogue number. As to thread sizes of the socket the most common PT (R) 1/2" is applied to the following coded items.
中文汉化 652113 塞卡174B型110x30毫米，PT1/2，0-120°C，63毫米长杆。塞卡生产多种温度计，标准型号及其规格如下。温度计外壳采用阳极氧化金色处理。标准型号在右侧列出刻度读数，并经过涂层保护以防外部因素影响。 直型温度计类型271B、291B和174B：带有坚固六角形螺母的螺纹插槽。可调整至所需观察角度，并由22毫米尺寸的黄铜螺帽锁定。 测量范围从-60°C到+250°C的温度计使用蓝色液体指示器，而测量范围超过250°C的则使用水银指示器。标准嵌入式管或口袋：温度低于或等于250°C时为黄铜材质，高于250°C时为钢材质。下单时，请注明螺纹尺寸、类型、范围以及浸没杆长度，或直接提供塞卡的产品目录编号。 对于插槽的螺纹尺寸，最常见的是PT（R）1/2
