652517 THERMOMETER DIAL MERCURY, ACTUATED STEM TYPE W/DETAIL

652517 THERMOMETER DIAL MERCURY, ACTUATED STEM TYPE W/DETAIL
规格参数 参数值
IMPA编码 652517
产品单位 PCE

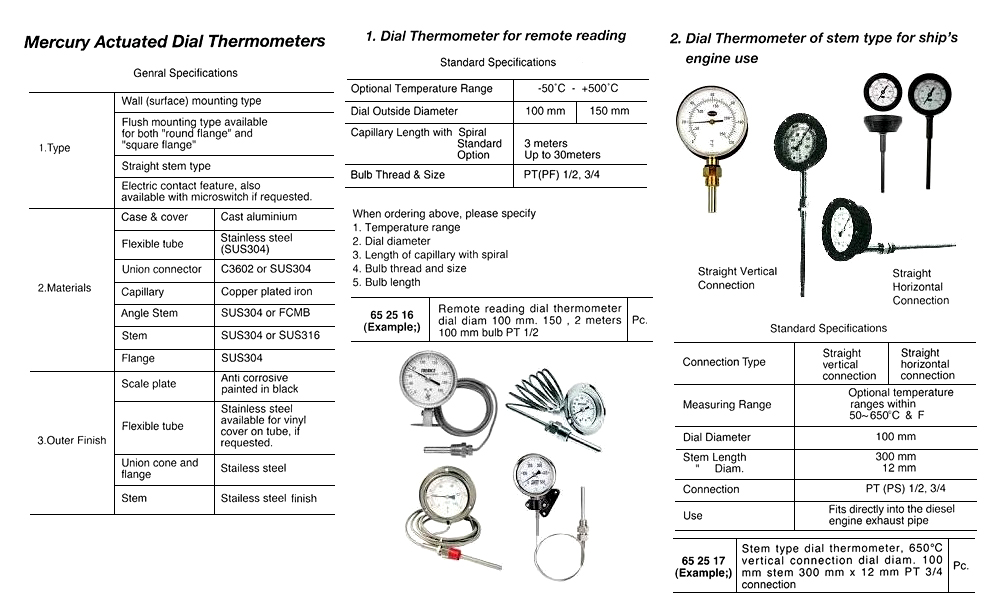

产品规格 Mercury actuated dial thermometers measure the temperature of an object regardless of the exterior temperature of environment. There are two types: a remote reading type and a rigid stem type. These temperatures are compensated for ambient temperature. The section from the bulb to the Bourdon tube of the thermometer is filled with mercury that is under pressure. Any temperature change around the bulb will cause the Bourdon tube to move thereby creating a change in the indicator needle. These thermometers are sturdily constructed to precision specifications and thoroughly inspected before packing. Resistant to shocks and vibrations.
中文汉化 652517 温度计标度盘水银，活塞类型与细节水银驱动的刻度盘温度计测量物体的温度，不论环境的外部温度如何。有两种类型：远程读数类型和刚性茎类型。这些温度已补偿环境温度。从灯泡到温度计波登管的部分充满了在压力下的汞。灯泡周围的任何温度变化都会导致波登管移动，从而改变指示针的变化。这些温度计结构坚固，按照精密规格制造，并在包装前经过彻底检查。抵抗冲击和振动。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
