651053 VEE BLOCK A-TYPE 100MM

651053 VEE BLOCK A-TYPE 100MM
规格参数 参数值
IMPA编码 651053
产品单位 PCE

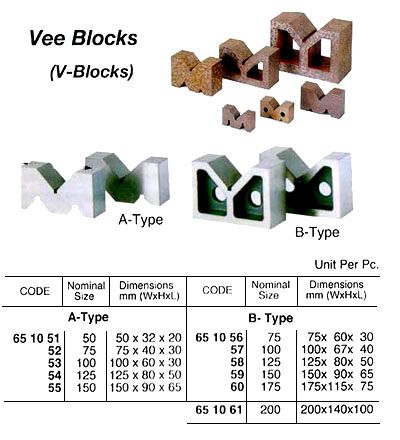

产品规格 Machine finished and made of cast iron. Two types available, the A type which is composed of three 90o v-shaped indentations of various depths and the B type which has one 90o v-shaped indentation. A set of two pieces can be used in mechanical processing and inspection as a holding table for marking off round rods and right angle bodies, or to hold round marks. An A type block equipped with a clip is also available upon request.
中文汉化 651053 V型块A型，100毫米，机器加工，铸铁制造。有两种类型：A型由三个不同深度的90度V形凹槽组成，而B型则有一个90度V形凹槽。两件套可用于机械加工和检验，作为标记圆棒和直角体的定位台，或固定圆形标记。可根据要求提供配备夹子的A型块。
