651055 VEE BLOCK A-TYPE 150MM

651055 VEE BLOCK A-TYPE 150MM
规格参数 参数值
IMPA编码 651055
产品单位 PCE

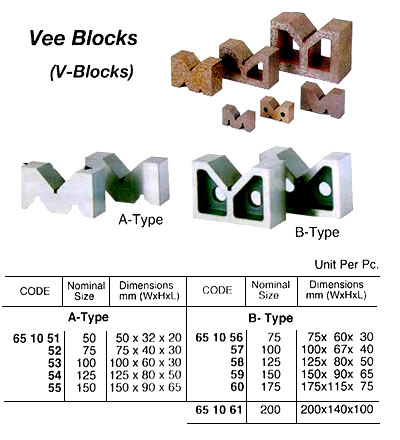

产品规格 Machine finished and made of cast iron. Two types available, the A type which is composed of three 90o v-shaped indentations of various depths and the B type which has one 90o v-shaped indentation. A set of two pieces can be used in mechanical processing and inspection as a holding table for marking off round rods and right angle bodies, or to hold round marks. An A type block equipped with a clip is also available upon request.
中文汉化 651055 V形块A型，150毫米。机器加工铸铁制成。有两种类型：A型由三个不同深度的90度V形凹槽组成，B型则有一个90度V形凹槽。两个零件组合可用于机械加工和检验，作为标定圆棒和直角体的支撑台，或固定圆形标记。可根据需要提供配备夹子的A型V形块。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
