651056 VEE BLOCK B-TYPE 75MM

651056 VEE BLOCK B-TYPE 75MM
规格参数 参数值
IMPA编码 651056
产品单位 PCE

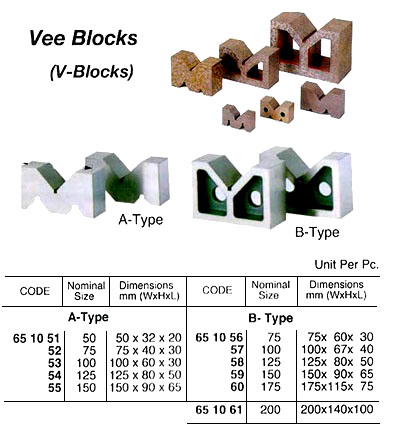

产品规格 Machine finished and made of cast iron. Two types available, the A type which is composed of three 90o v-shaped indentations of various depths and the B type which has one 90o v-shaped indentation. A set of two pieces can be used in mechanical processing and inspection as a holding table for marking off round rods and right angle bodies, or to hold round marks. An A type block equipped with a clip is also available upon request.
中文汉化 651056 V形块B型,75毫米。机器加工铸铁制成。有两种类型：A型由三个不同深度的90度V形凹槽组成，而B型则有一个90度V形凹槽。两个零件组合可以作为机械加工和检验时的圆形棒料和直角工件的定位台面，或者用于固定圆形标记。如需，也可提供配备夹子的A型V形块。
