651057 VEE BLOCK B-TYPE 100MM

651057 VEE BLOCK B-TYPE 100MM
规格参数 参数值
IMPA编码 651057
产品单位 PCE

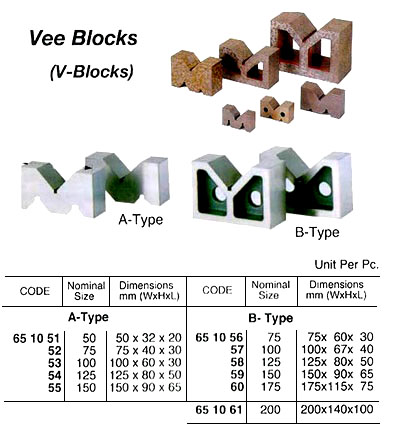

产品规格 Machine finished and made of cast iron. Two types available, the A type which is composed of three 90o v-shaped indentations of various depths and the B type which has one 90o v-shaped indentation. A set of two pieces can be used in mechanical processing and inspection as a holding table for marking off round rods and right angle bodies, or to hold round marks. An A type block equipped with a clip is also available upon request.
中文汉化 651057 V 型块 - 100mm 机加工铸铁制成。有两种类型可供选择：A型由三个不同深度的90°V形凹槽组成，而B型则有一个90°V形凹槽。两个零件的一套可用于机械加工和检验，作为标定圆棒和直角体的定位台，或用于固定圆形标记。如需，还提供配备夹子的A型V型块。
