651639 GAUGE REFERENCE FOR PRESSURE, CALIBRATOR D2(400)0-400BAR

651639 GAUGE REFERENCE FOR PRESSURE, CALIBRATOR D2(400)0-400BAR
规格参数 参数值
IMPA编码 651639
产品单位 PCE

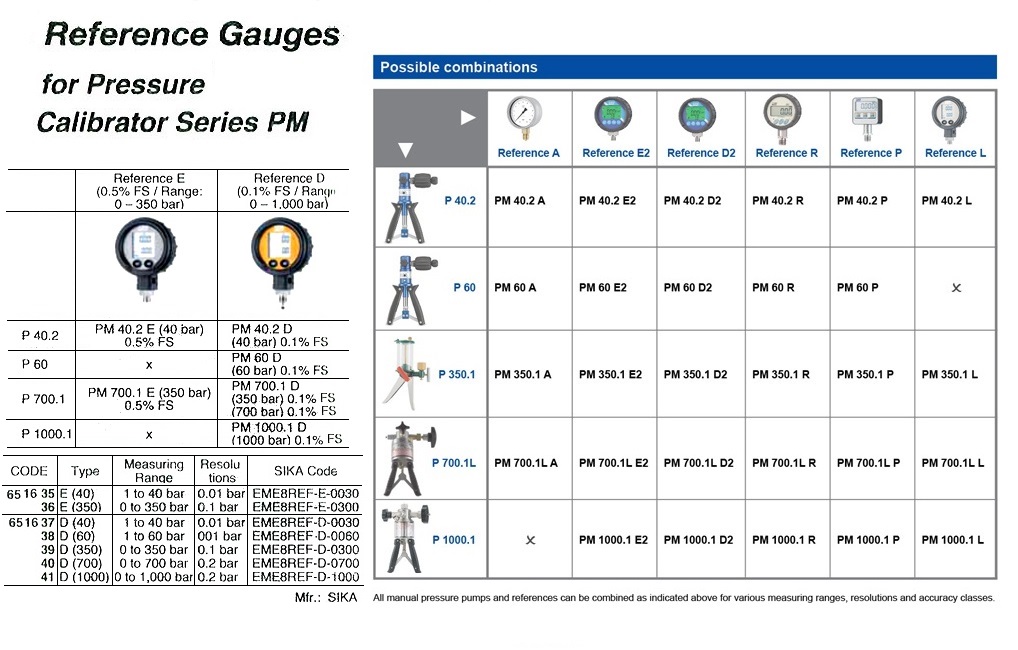

产品规格 Reference pressures of -1 up to 1,000 bar can be generated in a fast and simple way by these pressure calibrators with high accuracy of measurement and compact type of construction. Exact adjustment of the desired pressure is carried out by a precision adjustment valve. The reference pressure is indicated via an analogue precision pressure gauge or a digital LCD. The instruments under test are connected to the pressure output of the calibrators by a pressure hose and an adapter. Power is supplied by batteries or rechargeable accumulators. The automatic measuring range switch of the PM series grants an optimal resolution with any application. Different measurement units can be selected by pressing a function key. Reference Gauges for Pressure Calibrator Series PM: All hand-held pressure pumps and reference gauges can be combined for different measuring ranges, resolutions and accuracy classes, as outlined below.
中文汉化 651639 压力校准器D2(400)0-400巴的校准表 通过这些测量精度高且结构紧凑的压力校准器，可以快速简便地生成-1至1000巴的参考压力。 通过精密调节阀精确调整所需的压力量。 参考压力通过模拟精密压力表或数字LCD显示。 被测设备通过压力软管和适配器连接到校准器的压力输出端口。 供电方式为电池或可充电电池。 PM系列的压力校准器自动量程切换功能可在任何应用中提供最优分辨率。 按下功能键可选择不同的测量单位。 压力校准器系列PM的参考表： 所有手持式压力泵和参考表可根据不同的测量范围、分辨率和精度等级进行组合，如以下所述。
