653069 GAUGE PRESSURE AT RIMLESS, SQ.SHANK G3/8 75MM 0 - 1.0MPA

653069 GAUGE PRESSURE AT RIMLESS, SQ.SHANK G3/8 75MM 0 - 1.0MPA
规格参数 参数值
IMPA编码 653069
产品单位 PCE

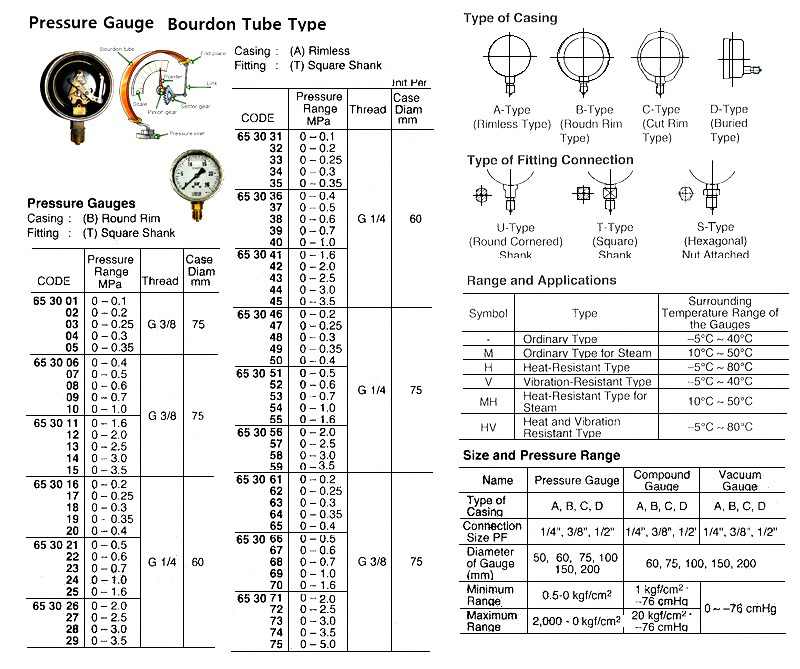

产品规格 Pressure Gauges: Service as a gauge for air, water, steam, oil or sea water and any liquid or gases which are not corrosive to brass. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Compound Gauges: For installations where it is necessary to read both pressure and vacuum on one side. Brass case and friction fit beaded ring. Phosphor bronze Bourdon tube. Vacuum Gauges: For vacuum reading. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Due to the great variety of casing, fitting connections, etc. in above gauges, please refer to the following illustrations and the “Guide of how to order” when ordering. The thread connection is the same as pipe straight threads (PF) which are of the “B.S.P.” (British Standard Pipe Threads).
中文汉化 653069 带无边，方柄G3/8 75mm 0 - 1.0MPa压力表： 用作空气、水、蒸汽、油或海水以及对黄铜无腐蚀性的任何液体或气体的压力指示。 铜壳，摩擦配合珠环，磷青铜波登管。 复合压力表： 用于需要在一个侧面同时读取压力和真空的安装。 铜壳和摩擦配合珠环。 磷青铜波登管。 真空表： 用于真空读数。 铜壳，摩擦配合珠环和磷青铜波登管。 由于上述压力表的外壳、连接件等种类繁多，请在订购时参阅以下图示和“订购指南”。 该压力表的螺纹连接与管道直螺纹（PF）相同，遵循“B.S.P.”（英国标准管螺纹）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
