653071 GAUGE PRESSURE AT RIMLESS, SQ.SHANK G3/8 75MM 0 - 2.0MPA

653071 GAUGE PRESSURE AT RIMLESS, SQ.SHANK G3/8 75MM 0 - 2.0MPA
规格参数 参数值
IMPA编码 653071
产品单位 PCE

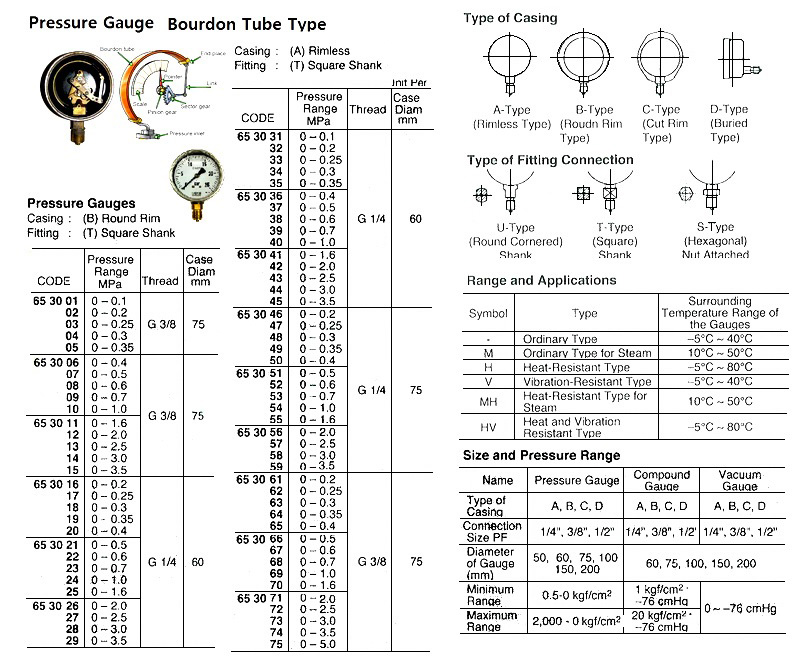

产品规格 Pressure Gauges: Service as a gauge for air, water, steam, oil or sea water and any liquid or gases which are not corrosive to brass. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Compound Gauges: For installations where it is necessary to read both pressure and vacuum on one side. Brass case and friction fit beaded ring. Phosphor bronze Bourdon tube. Vacuum Gauges: For vacuum reading. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Due to the great variety of casing, fitting connections, etc. in above gauges, please refer to the following illustrations and the “Guide of how to order” when ordering. The thread connection is the same as pipe straight threads (PF) which are of the “B.S.P.” (British Standard Pipe Threads).
中文汉化 653071 带无边框、方形柄的G3/8 75mm压力表： 用于空气、水、蒸汽、油或海水，以及对黄铜无腐蚀性的任何液体或气体的压力指示。 黄铜壳体，摩擦配合珠环，磷青铜波登管。 复合压力表： 适用于需要在一侧同时读取压力和真空的情况。 黄铜壳体，摩擦配合珠环。 磷青铜波登管。 真空表： 用于真空读数。 黄铜壳体，摩擦配合珠环，磷青铜波登管。 由于上述压力表的外壳、连接件等种类繁多，请在订购时参阅相关插图和“订购指南”。 其螺纹连接与管道直螺纹（PF）相同，遵循“B.S.P.”（英国标准管螺纹）规格。
