651599 GAUGE CALIBRATOR MARINE AMETEK, MGC-HIGH 0 TO 300BAR

651599 GAUGE CALIBRATOR MARINE AMETEK, MGC-HIGH 0 TO 300BAR
规格参数 参数值
IMPA编码 651599
产品单位 SET

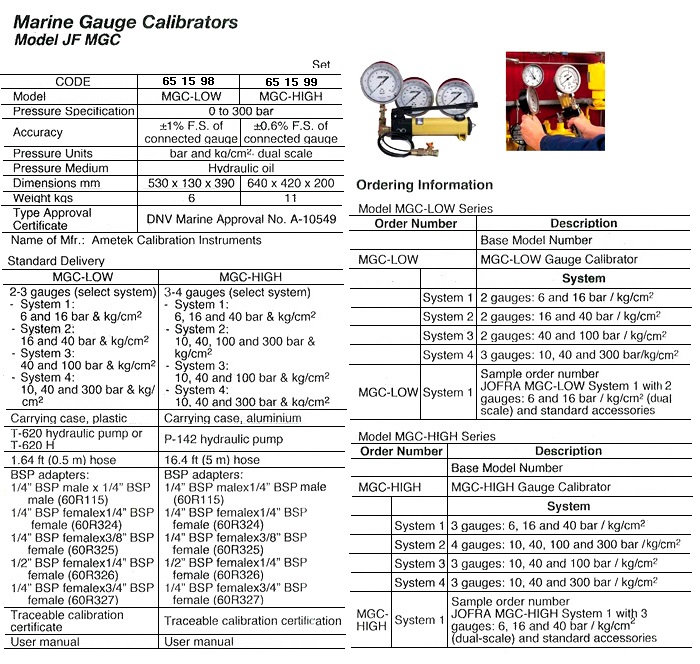

产品规格 The MGC series is using quality mechanical gauges as pressure reference. Connect the reference gauge and the unit-under-test to the hydraulic pump and calibrate. The MGC-LOW consists of 2 or 3 dual-scaled precision pressure gauges with ±1% F.S. accuracy and a hydraulic handpump fitted with hose, valve, and couplings. The MGC-HIGH consists of 3 or 4 dual-scaled precision pressure gauges with ±0.6% F.S. accuracy and a hydraulic jack pump fitted with hose, valve and couplings. The gauges provide a clear indication of pressure for comparison to the unit-under-test. The operator can then identify the extent of any error and adjust or replace faulty pressure indicators. Major Feature: Accuracy to ±0.6% F.S. of connected gauge, Pressure range 0 to 300 bar, 2 different models, Pressure units bar and kg/cm2, dual scale, Dual scale and easy-to-read gauges, Hydraulic pumps
中文汉化 651599 压力校准器 海洋 安捷科，MGC-HIGH 0 到 300 巴 MGC系列采用优质机械压力表作为压力参考。将参考表和待测设备连接到液压泵进行校准。 MGC-LOW包括2或3个±1%FS精度的双刻度精密压力表，配备有液压手动泵、软管、阀门和耦合器。 MGC-HIGH包含3或4个±0.6%FS精度的双刻度精密压力表，配备有液压柱塞泵（带软管、阀门和耦合器）。 这些压力表清晰显示压力，便于与待测设备进行比较。操作员可以据此识别任何误差，并调整或更换故障的压力指示器。 主要特性： 连接压力表的精度达到±0.6%FS，压力范围0至300巴，有两种型号，压力单位为巴和公斤/厘米²，双刻度，易于阅读的仪表，液压泵。
