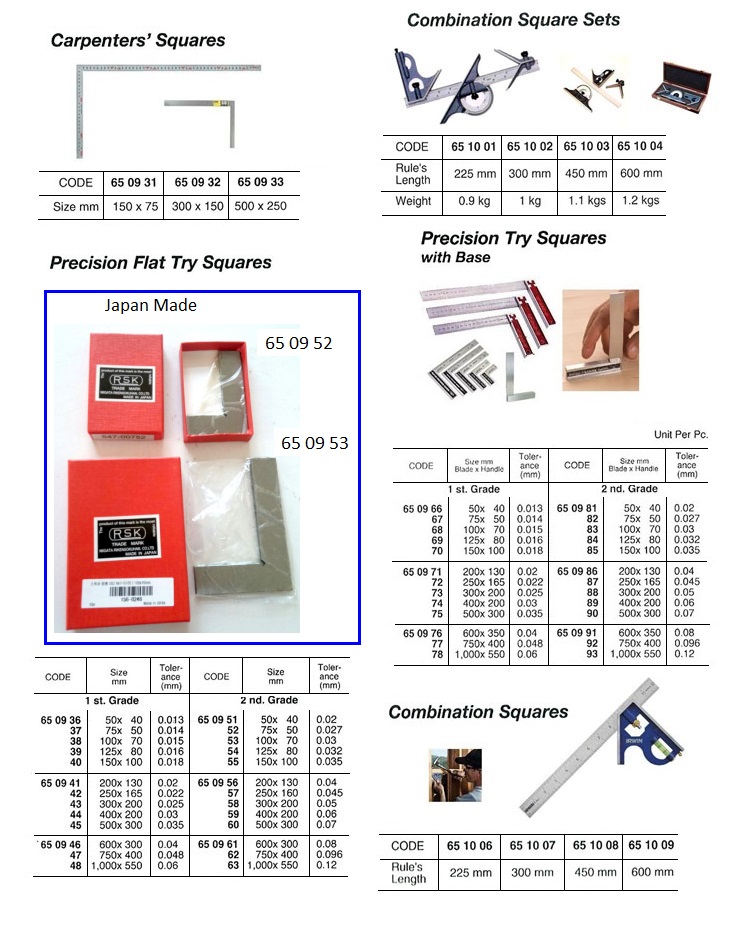

650983 TRY SQUARE PRECISION WITH BASE, 2ND-GRADE(+_0.03) 100X70MM

650983 TRY SQUARE PRECISION WITH BASE, 2ND-GRADE(+_0.03) 100X70MM
规格参数 参数值
IMPA编码 650983
产品单位 PCE
产品规格 Recommended for use where extreme accuracy is required. Base and blades are hardened, ground and lapped to insure that the square has a straight, parallel setup. 1st and 2nd grades are available according to their tolerance. Non graduated types are most commonly used but graduated types are also available upon request. 2nd Grade.
中文汉化 650983 TRY 方形精度与基础, 第二级(+-0.03) 100x70MM 高度推荐在需要极高精度的场合使用。 基础和刀片经过硬化、磨削和抛光处理, 以确保方形具有直线和平行的安装。 提供第一级和第二级, 根据其公差等级。 非刻度类型最为常见, 但根据要求也可提供刻度类型的。 第二级。
