814405 V BELT LINK TRADITIONAL TYPE, S-25 20MTR/BOX

814405 V BELT LINK TRADITIONAL TYPE, S-25 20MTR/BOX
规格参数 参数值
IMPA编码 814405
产品单位 BX

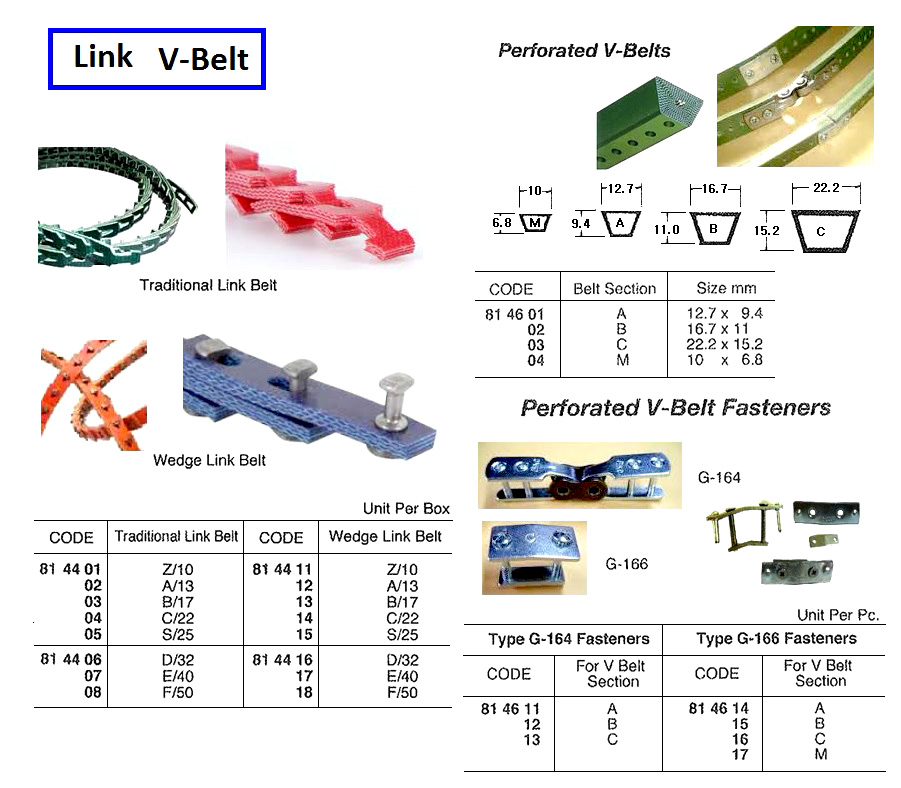

产品规格 By utilising a composite polyurethane and polyester material ensures an extended operational life over rubber based V-belts with high resistance to oil, chemicals, extremes of temperature and abrasive. Ease of fitting, and eliminate routine maintenance. With the unique detachable link construction, the belt can be joined without dismantling. Link V-Belts is available in most standard sections (Z/10, A/13, B/17, C/22, S/25, D/32, E/40 and F/50) on convenient 20 meter boxed reels. Belt to any length can be conveniently made up as required due to the metal stud system. To unfasten, turn stud heads 90°, insert tool and twist. To fasten, snap last link over stud heads and turn heads 90o. Wedge link belt offers significant increase in power on the majority of wedge belt drives.
中文汉化 814405 V型带链接传统类型，S-25，20米/盒。利用复合聚氨酯和涤纶材料确保了比橡胶V带更长的使用寿命，具有高度的抗油、化学物质、极端温度和磨损性能。易于安装，并减少了常规维护需求。独特的可拆卸链接结构使得无需拆解即可连接V带。链接V带提供多种标准部分（Z/10，A/13，B/17，C/22，S/25，D/32，E/40和F/50）的选择，以20米装箱的形式方便使用。由于金属螺柱系统，可根据需要轻松制作任意长度的V带。解开时，将螺柱头旋转90度，插入工具并扭转。固定时，将最后一个链接扣在螺柱头上，然后旋转螺柱头90度。楔形链接带为大多数楔形带驱动器提供了显著的动力提升。
