814408 V BELT LINK TRADITIONAL TYPE, F-50 20MTR/BOX

814408 V BELT LINK TRADITIONAL TYPE, F-50 20MTR/BOX
规格参数 参数值
IMPA编码 814408
产品单位 BX

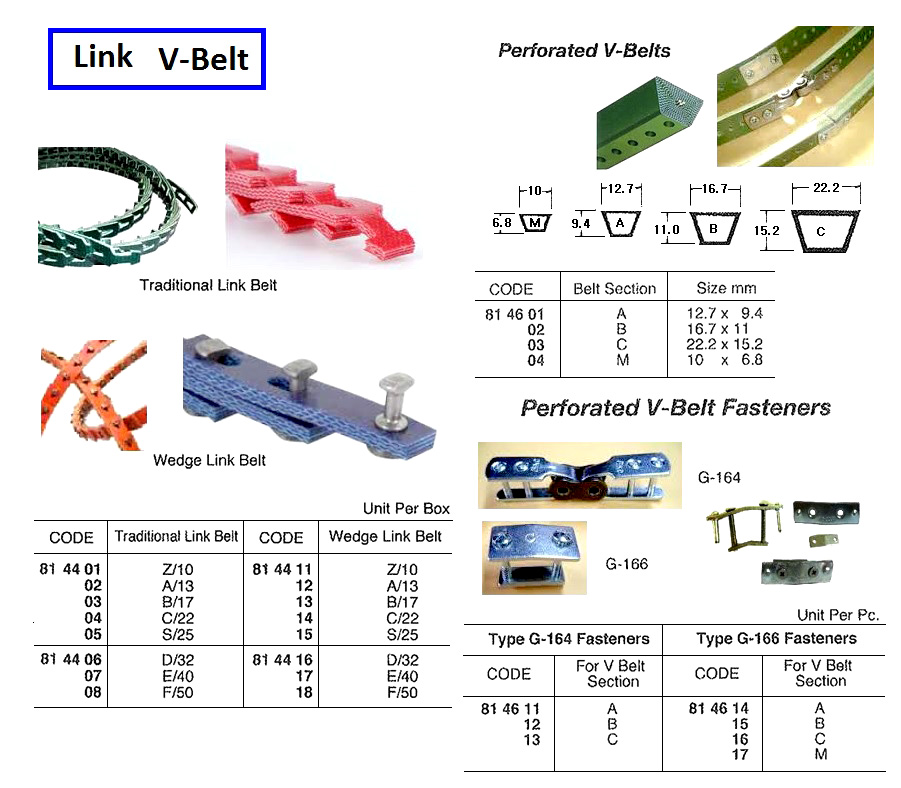

产品规格 By utilising a composite polyurethane and polyester material ensures an extended operational life over rubber based V-belts with high resistance to oil, chemicals, extremes of temperature and abrasive. Ease of fitting, and eliminate routine maintenance. With the unique detachable link construction, the belt can be joined without dismantling. Link V-Belts is available in most standard sections (Z/10, A/13, B/17, C/22, S/25, D/32, E/40 and F/50) on convenient 20 meter boxed reels. Belt to any length can be conveniently made up as required due to the metal stud system. To unfasten, turn stud heads 90°, insert tool and twist. To fasten, snap last link over stud heads and turn heads 90o. Wedge link belt offers significant increase in power on the majority of wedge belt drives.
中文汉化 814408 V型带链接传统类型,F-50 20米/盒通过使用复合聚氨酯和涤纶材料确保了比橡胶基V带更长的使用寿命，具有高度抵抗油、化学品、极端温度和磨蚀的能力。易于安装，并消除了常规维护需求。凭借独特的可拆卸链接结构，无需拆卸即可连接带子。链接V带提供大多数标准部分（Z/10、A/13、B/17、C/22、S/25、D/32、E/40和F/50）的方便，以20米装箱卷轴形式供应。由于金属螺柱系统，可根据需要轻松制作任意长度的带子。要解开，将螺柱头旋转90度，插入工具并扭转。要固定，将最后一个链接扣在螺柱头上，然后转动头部90度。楔形链接带为大多数楔形带驱动器提供了显著的功率提升。
