814412 V BELT LINK WEDGE TYPE, A-13 20MTR/BOX

814412 V BELT LINK WEDGE TYPE, A-13 20MTR/BOX
规格参数 参数值
IMPA编码 814412
产品单位 BX

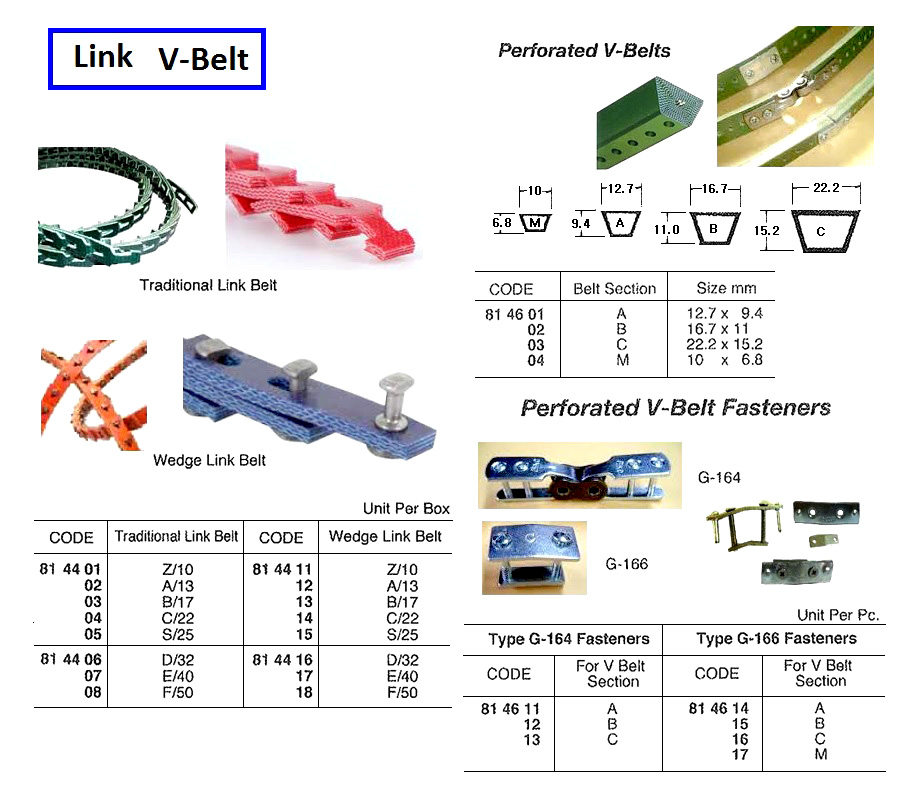

产品规格 By utilising a composite polyurethane and polyester material ensures an extended operational life over rubber based V-belts with high resistance to oil, chemicals, extremes of temperature and abrasive. Ease of fitting, and eliminate routine maintenance. With the unique detachable link construction, the belt can be joined without dismantling. Link V-Belts is available in most standard sections (Z/10, A/13, B/17, C/22, S/25, D/32, E/40 and F/50) on convenient 20 meter boxed reels. Belt to any length can be conveniently made up as required due to the metal stud system. To unfasten, turn stud heads 90°, insert tool and twist. To fasten, snap last link over stud heads and turn heads 90o. Wedge link belt offers significant increase in power on the majority of wedge belt drives.
中文汉化 814412 V型皮带链接,楔形,A-13,20米/盒。通过使用复合聚氨酯和涤纶材料，确保了比橡胶V带更长的使用寿命，具有高度的抗油、化学物质、极端温度和磨损性能。易于安装，并减少了常规维护需求。独特的可拆卸链接结构使得无需拆卸即可连接皮带。链接V带提供大多数楔形带驱动所需的大部分功率提升，且方便地以20米一盒的形式供应，涵盖了标准部分（Z/10、A/13、B/17、C/22、S/25、D/32、E/40和F/50）。由于金属螺柱系统，可以根据需要方便地制作任意长度的皮带。要解开，将螺柱头旋转90度，插入工具并扭转；要固定，将最后一个链接扣在螺柱头上，然后旋转螺柱头90度。楔形链接带为大多数楔形带驱动提供了显著的动力增益。
