814413 V BELT LINK WEDGE TYPE, B-17 20MTR/BOX

814413 V BELT LINK WEDGE TYPE, B-17 20MTR/BOX
规格参数 参数值
IMPA编码 814413
产品单位 BX

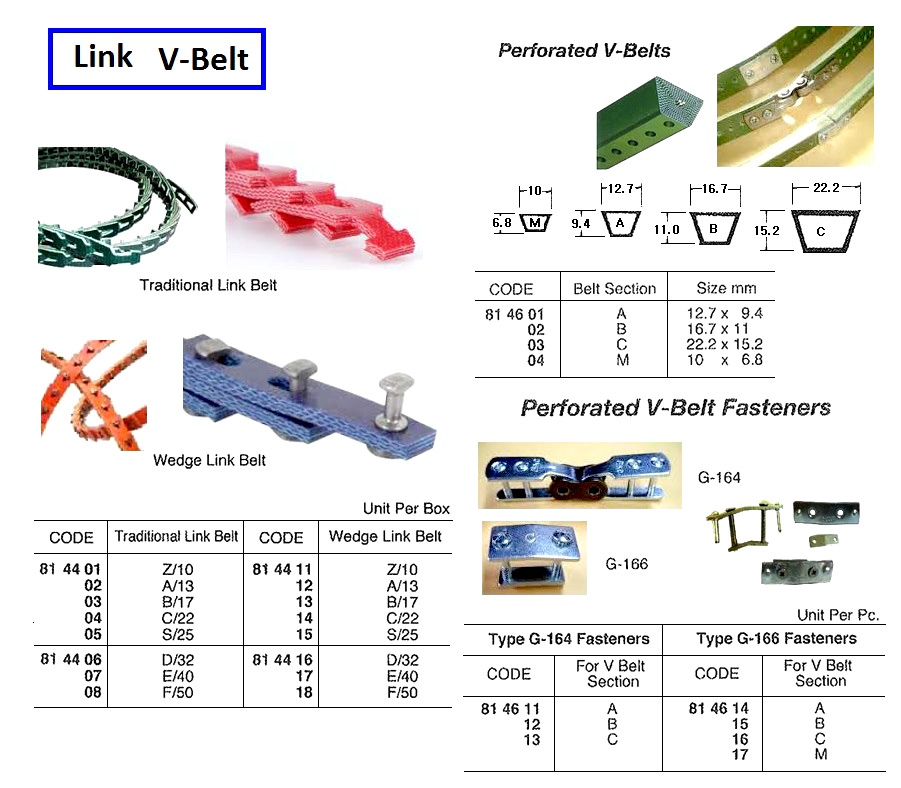

产品规格 By utilising a composite polyurethane and polyester material ensures an extended operational life over rubber based V-belts with high resistance to oil, chemicals, extremes of temperature and abrasive. Ease of fitting, and eliminate routine maintenance. With the unique detachable link construction, the belt can be joined without dismantling. Link V-Belts is available in most standard sections (Z/10, A/13, B/17, C/22, S/25, D/32, E/40 and F/50) on convenient 20 meter boxed reels. Belt to any length can be conveniently made up as required due to the metal stud system. To unfasten, turn stud heads 90°, insert tool and twist. To fasten, snap last link over stud heads and turn heads 90o. Wedge link belt offers significant increase in power on the majority of wedge belt drives.
中文汉化 814413 V型皮带链接楔形类型，B-17，20米/盒。通过使用复合聚氨酯和涤纶材料，确保了比橡胶V带更长的使用寿命，具有高度的抗油、化学物质、极端温度和磨蚀性能。安装简便，并减少了常规维护需求。独特的可拆卸链接设计使得无需拆解即可连接皮带。链接V型皮带提供大多数楔形皮带驱动所需的大部分标准部分（Z/10，A/13，B/17，C/22，S/25，D/32，E/40和F/50）的方便20米装盘。由于金属螺栓系统，可根据需要轻松制作任意长度的皮带。要解开时，将螺栓头旋转90度，插入工具并扭转。要固定时，将最后一个链接扣在螺栓头上，然后旋转头90度。楔形链接皮带为大多数楔形皮带驱动器提供了显著的功率提升。
