814414 V BELT LINK WEDGE TYPE, C-22 20MTR/BOX

814414 V BELT LINK WEDGE TYPE, C-22 20MTR/BOX
规格参数 参数值
IMPA编码 814414
产品单位 BX

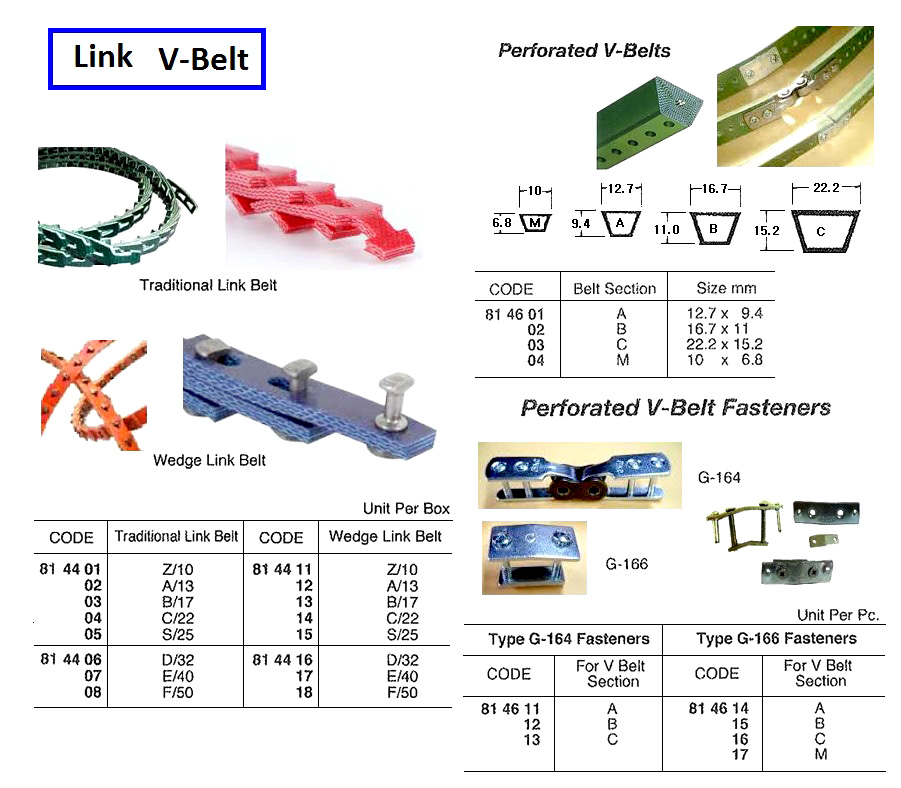

产品规格 By utilising a composite polyurethane and polyester material ensures an extended operational life over rubber based V-belts with high resistance to oil, chemicals, extremes of temperature and abrasive. Ease of fitting, and eliminate routine maintenance. With the unique detachable link construction, the belt can be joined without dismantling. Link V-Belts is available in most standard sections (Z/10, A/13, B/17, C/22, S/25, D/32, E/40 and F/50) on convenient 20 meter boxed reels. Belt to any length can be conveniently made up as required due to the metal stud system. To unfasten, turn stud heads 90°, insert tool and twist. To fasten, snap last link over stud heads and turn heads 90o. Wedge link belt offers significant increase in power on the majority of wedge belt drives.
中文汉化 814414 V型皮带链接楔形类型,C-22 20米/盒 通过采用复合聚氨酯和涤纶材料，确保了比橡胶V带更长的使用寿命，具有极高的抗油、化学物质、极端温度和磨蚀性能。 安装简便，无需常规维护。 利用独特的可拆卸链接结构，可以无需拆解就连接皮带。 链式V带提供大多数楔形带驱动所需的大部分标准部分（Z/10, A/13, B/17, C/22, S/25, D/32, E/40和F/50）的20米便携式卷轴供应。 由于金属螺栓系统，可以根据需要方便地制作任意长度的皮带。 解开时，将螺栓头旋转90度，插入工具并扭转。 安装时，将最后一个链接扣在螺栓头上，然后转动螺栓头90度。 楔形链接带为大多数楔形带驱动器提供了显著的功率提升。
