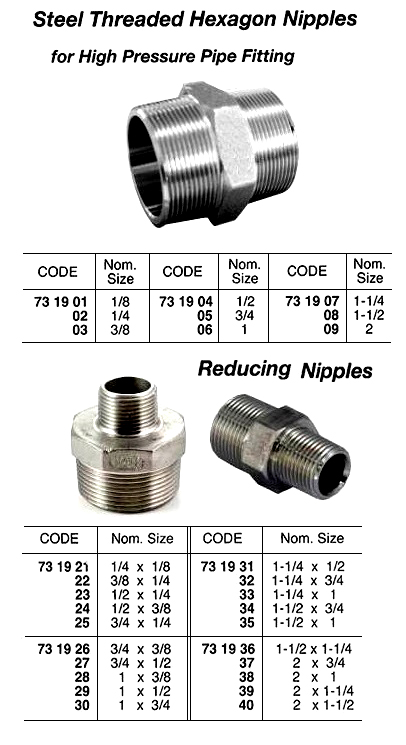

731931 NIPPLE HEXAGON REDUCING STEEL, THREADED 1-1/4X1/2 F/H.P. PIPE

731931 NIPPLE HEXAGON REDUCING STEEL, THREADED 1-1/4X1/2 F/H.P. PIPE
规格参数 参数值
IMPA编码 731931
产品单位 PCE
产品规格 High pressure, drop forged steel, ungalvanized (black) pipe fittings with a pressure rating of 210 kgf/cm2 at 120oC. Threads conform to the Taper Pipe Threads standards of JIS B 0203 and the ISO 7/1. Larger sizes and types of fittings not listed below are also available.
中文汉化 731931 钢质倒角六角接头，带螺纹，用于1-1/4x1/2 F/H.P. 管道高压锻造钢，未经热浸镀锌，压力等级为210 kgf/cm²（在120°C），符合JIS B 0203的锥管螺纹标准和ISO 7/1标准。除了下面未列出的更大尺寸和类型的接头，也有供应。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
