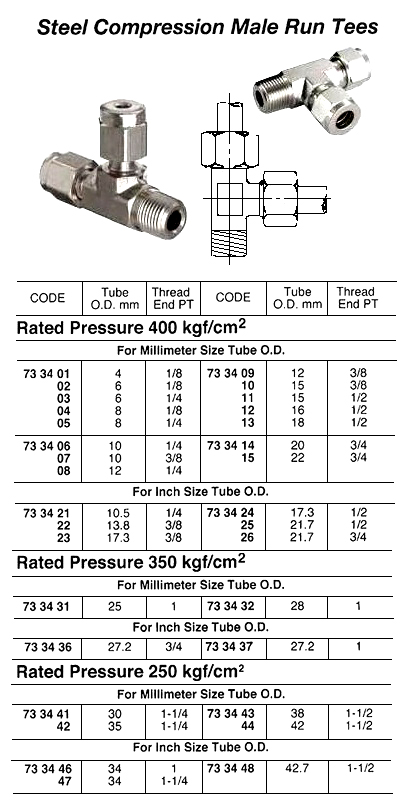

733448 RUN TEE MALE COMPRESSION STEEL, 42.7MMXPT1-1/2 250KG

733448 RUN TEE MALE COMPRESSION STEEL, 42.7MMXPT1-1/2 250KG
规格参数 参数值
IMPA编码 733448
产品单位 PCE
产品规格 These fittings are used for pneumatic, chemical and most other fluids without flaring-welding. Threads of these pipe fittings conform to the Taper Pipe Threads of JIS B 0203 and ISO 7/1 standards. Types with a rated pressure of 100 kgf/cm2 are also available upon request.
中文汉化 733448 压缩接头,男性,钢制,42.7mmXPT1-1/2,250公斤 这些管件用于气动、化学以及大多数其他非焊接流体。 这些管件的螺纹符合JIS B 0203和ISO 7/1标准的锥形管螺纹。 如有需要，也可提供额定压力为100公斤/平方厘米的类型。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
